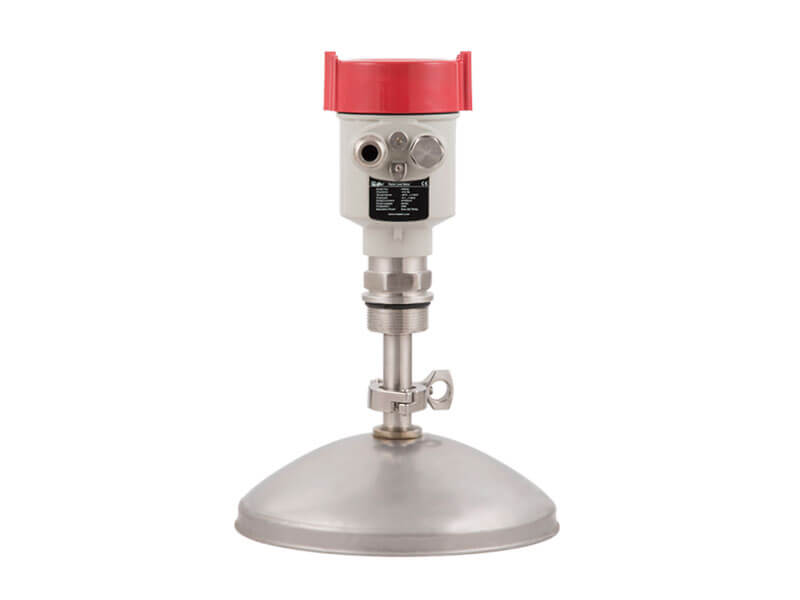

HR264 26G High Frequency Radar Level Sensor
High frequency radar level sensor radar meter can reach up to 70 meters. the instrumentation can be used for reactor, solid silo and very complex measurement environment.
Application :
● Solid material
● Process container or strong dust
● Strong dust
● Condensation occasions
● Liquid with foam
● Powder
Advantages
01The measuring range up to 70m.
02Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
03Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
04Serious dust environment on the high level meter work has little effect.
05A shorter wavelength, the reflection of solid surface inclination is better.
Resources
Technical Data
|
Measurement Span |
0 to 70 meters
15m/20m/35m/50m (powder);
70m (particle);
70m(lump materials) |
|
Signal Output: |
4...20mA/HART (2 wires/4 wires) RS485/Modbus |
|
Process Connection |
Multidirectional flange |
|
Medium Temperature |
-40~250℃ |
|
Process Pressure |
-1Bar~1 Bar |
|
Accuracy |
±15mm |
|
Proof Grade |
IP67 |
|
Supply |
DC24V or 85-265VAC |
|
The Frequency Span |
up to 26G Hz |
|
Explosion proof grade |
Exib ⅡCT6 G |
