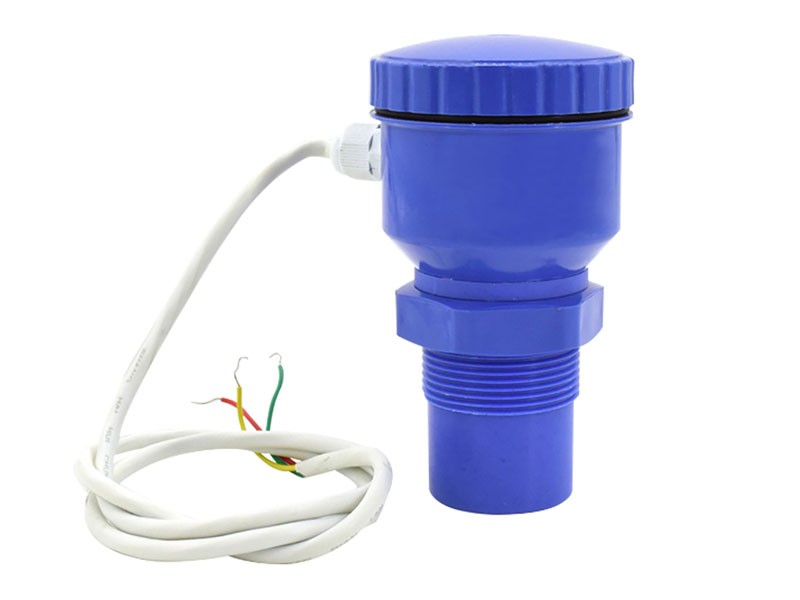

UE3008 Ultrasonic Food Grade Level Transmitter
UE3008 Ultrasonic food grade level transmitter combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.
Application :
● Liquid level measurement
● Solid level measure
● Beverages level monitoring
● Non contact measurement in farm warehouse
Advantages
01Support M49*1.5 mm threaded into type installation and coil clamping type installation
02Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03Housing adopts the NLEPE synthetic material IP66 waterproof
04High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Resources
Technical Data
|
Level Range |
1-5 M |
|
Output |
1~5V/0~5V;4-20mA/RS485,RS232/NPN swith or relay |
|
Bline Zone |
≤30CM |
|
Power supply |
12-24V/50 mA |
|
Working temp |
-20°C~+60°C |
|
Pressure port |
G1-1/2” male or M30*1.5 male |
|
Application |
Liquid , Solid |
