High-Precision 80GHz Radar Flowmeter for Harsh Water Management

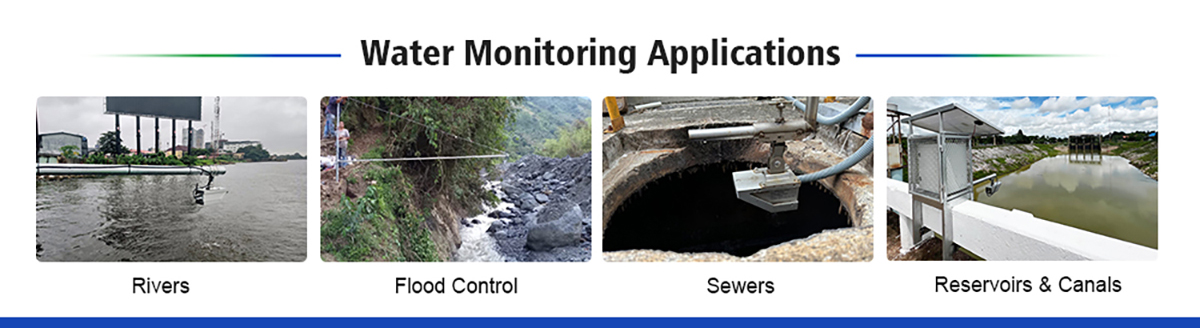

With increasing demands for urban drainage, pumping stations, and smart water management, accurate real-time flow monitoring has become more important.

Traditional open channel monitoring often faces challenges such as inaccurate measurements, complex installation, frequent maintenance, and unstable flow calculations.

HOLYKELL HRF600 series Radar Flowmeter provides a reliable non-contact flow monitoring solution for water management applications.



Why Choose HRF600?



•Zero Maintenance Design: Non-contact 80GHz radar technology minimizes downtime caused by sediment, floating debris, or corrosion.

•3-in-1 Precision Sensing: One device measures Water Level, Velocity, and Flow Rate with high accuracy.

•Proven Reliability: Trusted across 175+ countries with an ultra-low return rate of <0.05%.

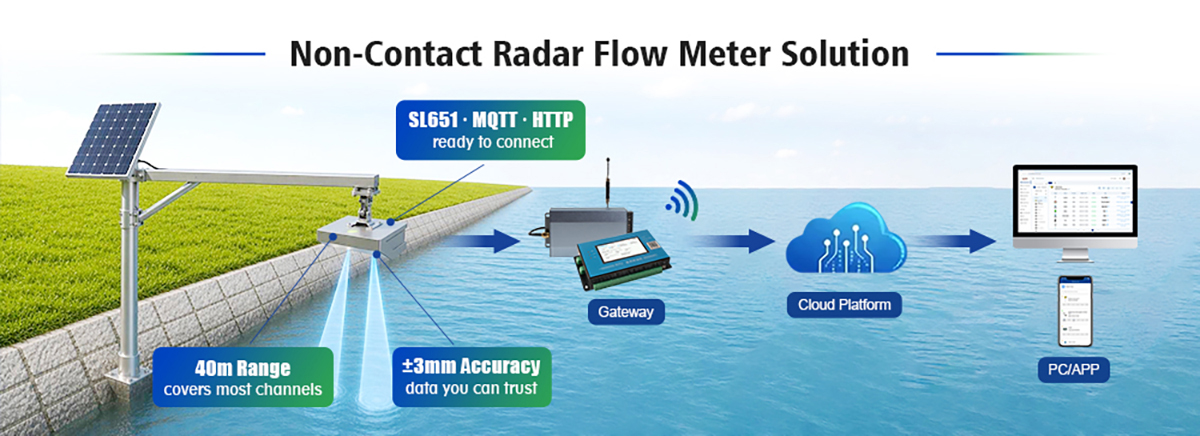

•Smart IoT Integration: Seamless connectivity via 4G, NB-IoT, LoRa, or RS485. Supports SL651, MQTT, and HTTP protocols.



Technical Specifications



Technology	80 GHz Frequency Modulated Continuous Wave (FMCW)
Measurement Range	Water Level: 0.1m ~ 40m; Velocity: 0.01m/s ~ 20m/s
Accuracy	Level: ±3mm; Velocity: ±0.01m/s; Flow: ±2.0%
Communication	4G, NB-IoT, LoRa, RS485/RS232, 4-20mA
