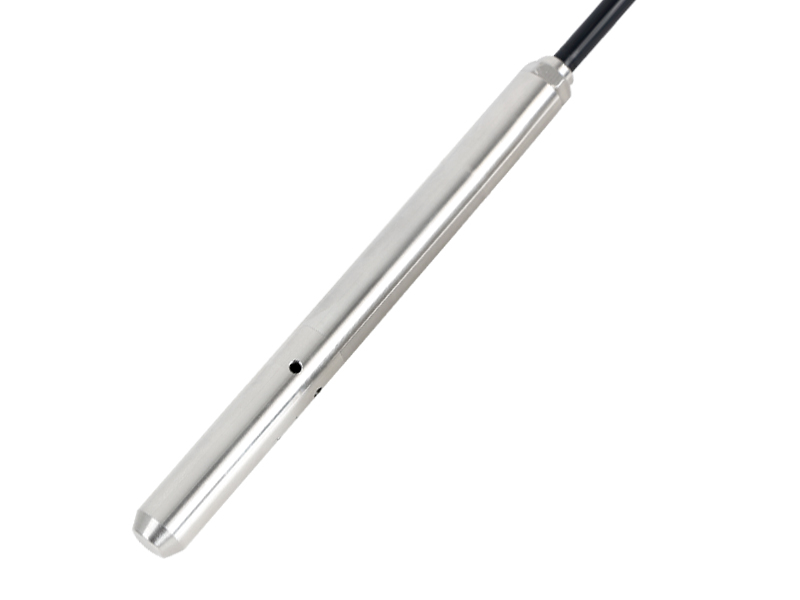

HPT607-E Smaller Diameter Submersible Borehole Level Sensor
Application:
●Deep wells
●Borehole
●Groundwater level monitoring
●Drilling platform
●Surface water monitoring
●Control of lift and pumping station
●Level measurement in confined space
Advantages
01A Ø16mm only probe for smaller wells or boreholes

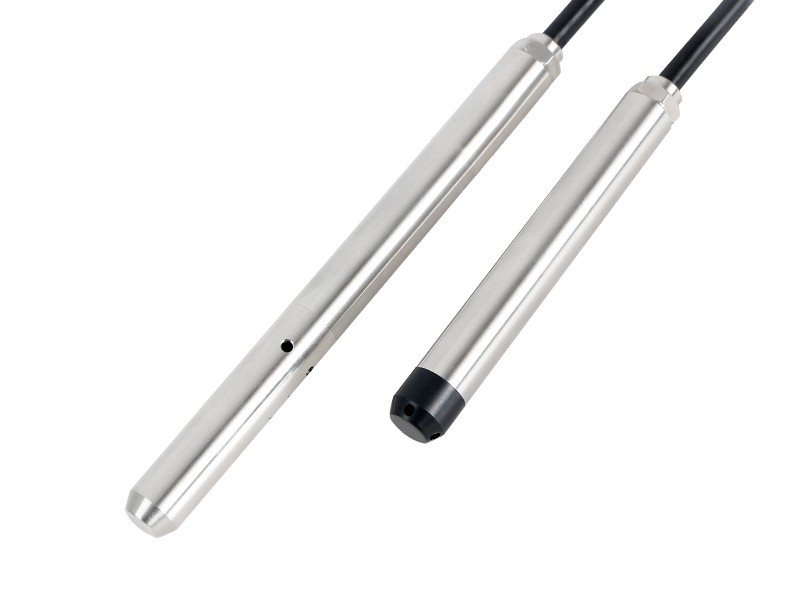

02Two unique filtration designs for different ranges
03Automatic temperature compensation
04Lightning protection, shock and friction resistant
05Sensor compatible with most monitoring equipment
06Fully sealed IP68 structure for long immersion in water
Resources
Technical Data
|
Parameter |
HPT607-E |
|
Pressure Range |
0-2 Bar…..20 Bar / 0-20m...200m H₂O optional 0-0.5 Bar…..2Bar / 0-5m...20m H₂O optional (by customized) |
|
Accuracy |
≤ ±0.5%F.S (Typical) |
|
Long-term Stability |
0.2%F.S/year |
|
Working Temp. |
-40-80℃(non-corrosive medium) |
|
Temperature Compensation |
0℃~50℃ (Full temp span 1%F.S. accuracy) |
|
Medium compatible |
Compatible with 316L Stainless Steel |
|
Output |
4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU |
|
Power Supply |
10-30Vdc,5Vdc±5%,3.5-36Vdc |
|
Zero Temp. Drift |
0.01%FS/℃ |
|
FS Temp. Drift |
0.005%FS/℃ |
|
Electronic connection |
Fixed cable and water proof IP68 |
|
Response time |
≤20 ms(Current and voltage signals); ≤100 ms (digital signals) |
