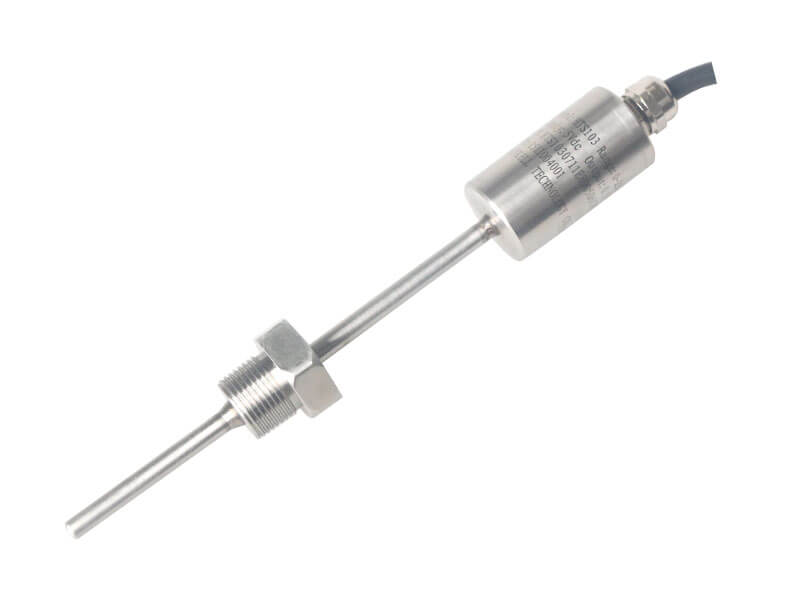

HTS103 Integrated Isolated Type Temperature Sensor
HTS103 Integrated Isolated Type Temperature Sensor hermetically sealed housing make it suitable the given measuring ranges are also available in mbar, kPA and MPa.for immersion in most industrial liquids and oils.
Application :
● Pipeline and ventilation system
● Hydraulic and pneumatic system
● Petrochemical industry
● Hydraulic and pneumatic systems
● Cooling system
● Heating system
● Air conditioning system(HAVC)
Parameter: |
HTS101 |
HTS102 |
HTS103 |
HTS104 |
Measurement Range (Degree C/ ℃): |
-50~0; -50~50; 0~80; 0~100; 0~120;0~150 0~200 optional |
0~250; 0~300; 0~400 optional |
-50 to 400 optional |
|
Installation Type: |
Insert type |
Insert type |
Insert type |
Insert type |
Probe length: |
50 mm or customized |
50 mm or customized |
50 mm or customized |
50 mm or customized |
Probe Dimension: |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
Sensor Type: |
PT100; Pt1000 |
PT100; Pt1000 |
PT100; Pt1000 |
PT100; Pt1000 |
Signal Output: |
resistive signal |
4-20 mA 0-5V 0-10V |
||
Signal wires type: |
2 wires or 3 wires |
2 wires |
3 wires |
|
Power supply: |
NA |
9~30Vdc |
18~30Vdc |
|
Linear: |
±0.1%F.S.; ±0.25%F.S.; ±0.5%F.S. Optional |
|||
Working pressure: |
40Bar (standard); 300 Bar (customized) |
|||
Long time stability: |
0.1%F.S. |
|||
Response time: |
T=50 2.3S; T=90 5.4S |
|||
Electronic proof: |
NA |
Reverse polarity protection; Overload voltage protection (standard); surge protection (customized) |
||
Environment temp: |
-40~85 Degree C |
|||
Storage temp: |
-40~125 Degree C |
|||
Materials of housing: |
304 Stainless Steel |
|||
Materials of process: |
304 Stainless Steel |
|||
Water proof grade: |
IP65 |
