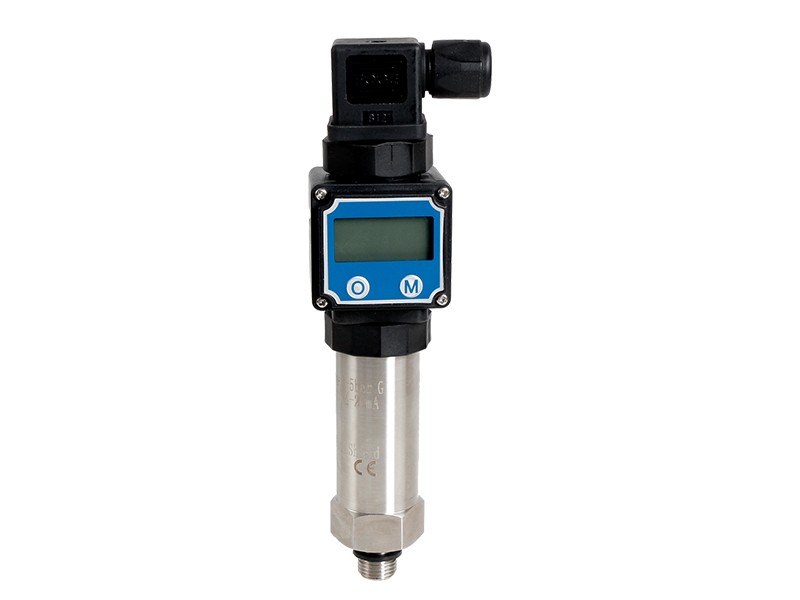

HPT200-G Pressure Sensor With Display
HPT200-G pressure transducer with display Industrial Pressure Transmitter with high quality piezoresistive pressure sensor, it can read value locally, easy for use.
Application :
● Industrial process control
● Biomedical
● Eco Saving
● Energy and water treatment
● Petroleum,Chemical industry
● Metallury
Parameter |
HPT200-G |
|
|
|
||||||||
Pressure Range |
Gage /Absolute / Negative pressure optional. |
|||||||||||
Overload |
200% F.S. |
|
|
|
||||||||
Burst Pressure |
500% F.S. |
|
|
|
||||||||
Accuracy |
≤ ±0.5%F.S ≤ ±0.25%F.S ≤ ±0.1%F.S (by customize)
|
|
|
|
|
|
||||||
(Linearity Hysteresis |
Including non-lin., rep. and hys. |
|
|
|
||||||||
Repeatability) |
Optional |
|
|
|
|
|
||||||
Long Stability |
0.1%F.S/Year |
|||||||||||
Working Temp |
-40℃~85℃/150℃ optional |
|
|
|||||||||
Compensation Temp |
0℃....50℃(P≤35KPa) or -10℃...70℃(P>35KPa) |
|
||||||||||
Storage Temp |
-40℃~105℃ |
|||||||||||
Medium Compatible |
Compatible with 316L Stainless Steel |
|
||||||||||
Electronic Wire |
2 Wires 3 Wires |
|
|
|
|
|||||||
Output |
4~20mA 0~5V,1~5V |
|
|
|
|
|||||||
Power Supply |
12~30Vdc 12~30Vdc |
|||||||||||
Insulate resistance |
>100M Ω @100V |
|||||||||||
Zero Temp. Drift |
0.02%FS/℃(≤35kPa), 0.01%FS/℃(>35kPa) |
|||||||||||
FS Temp. Drift |
0.03%FS/℃(≤35kPa), 0.02%FS/℃(>35kPa) |
|||||||||||
Local display |
4 -1/2 bits LED/LCD local display |
|||||||||||
LED indicator Specification |
Dimension: 43*38*17.5 mm; Non-linear: ±0.02%F.S.; Display scope: -9999 to +9999
Sampling rate 10 times / sec.; Working temp range: -30 to +80℃ Overload display ‘ERR’; Backlight suitable for dark environment application. |
|||||||||||
Electronic connection |
DIN Hirschmann Terminal Box 4 Pins and IP65. |
|||||||||||
Mechanical vibration |
±20g |
|||||||||||
Pressure connect port |
1/4"NPT male 1/2"NPT Female G1/2"; G1/4"male optional. (By Customized)
|
|||||||||||
IP rating |
IP65 |
|||||||||||
Response time |
≤10ms |
Order information
Pressure range : 0-50 bar , Output : 4-20mA , Power supply : 12~36VDC ,
Process connection : 1/4"NPT male , Electronic Connector : Hirchaman connector .
