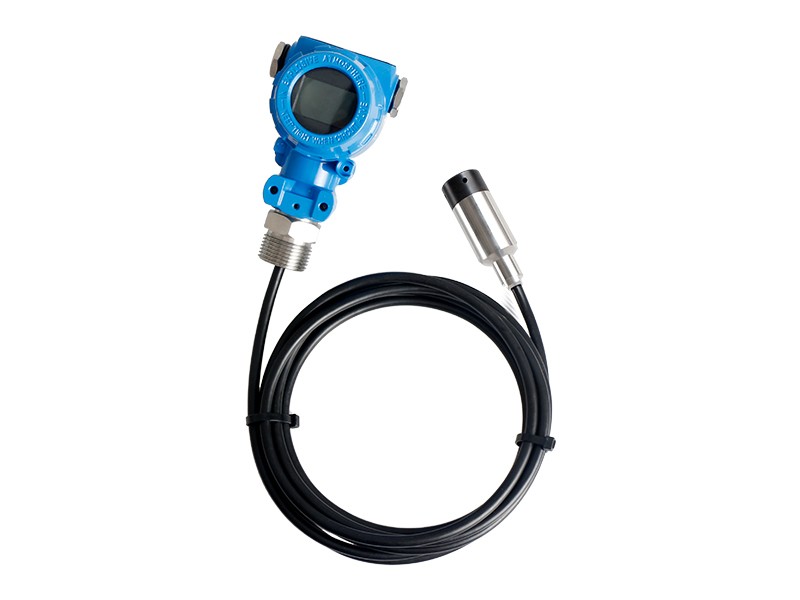

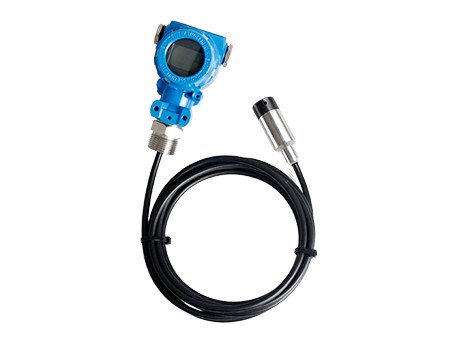

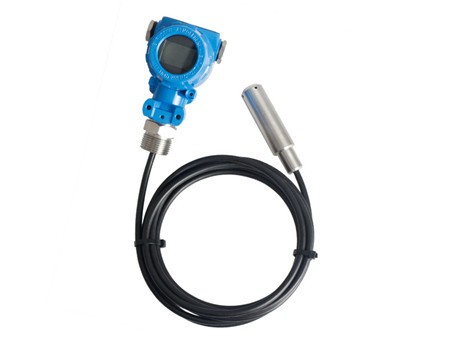

HPT612 Isolated Type Level Transmitter
HPT612 Isolated type submersible level transmitter features are-movable nose cone at the sensor which protects the diaphragm from damage. Units come equipped with a 270-pound tensile strength shielded and vented cable.
Application :
●Vessel and storage monitor systems
●Control of lift and pumping stations
●Surface water monitoring
●Dewatering
Advantages
01MEAS TE pressure cell, 0.25% F.S
02316L stainless steel diaphragm, all welded 316SS body
03Custom level ranges from 50cm to 500m
04IP68 full sealed plastic waterproof design
05Optional Lifetime Lightning Protection
Resources
Technical Data
|
Range |
0~1 M....500 M H2O optional |
|
Output |
4~20mA;0-10V/0-5V;RS485 RTU Modbus |
|
Power supply |
12VDC~30VDC or 3.6V Li-battery |
|
Accuracy |
0.15%F.S;0.25%F.S; 0.5%F.S optional |
|
Working temperature |
-30°C~+85°C |
|
Temp Compensation |
-10°C~50°C |
|
Long Stability |
Standard: 0.2%F.S±0.05% |
|
Alarm function |
With sound alarm output, optional. |
|
Local Display |
LCD or LED |
|
Zero Temp. Drift |
0.3%FS/°C（≤100kPa）；0.1%FS/°C（>100kPa） |
|
Certificate |
CE,ExiaII CT6 Ga ,ATEX,RoHS |
Order information
Level range: 0-5m Output: 4-20mA
Power supply: 12~36VDC 5m directly cable: IP68
