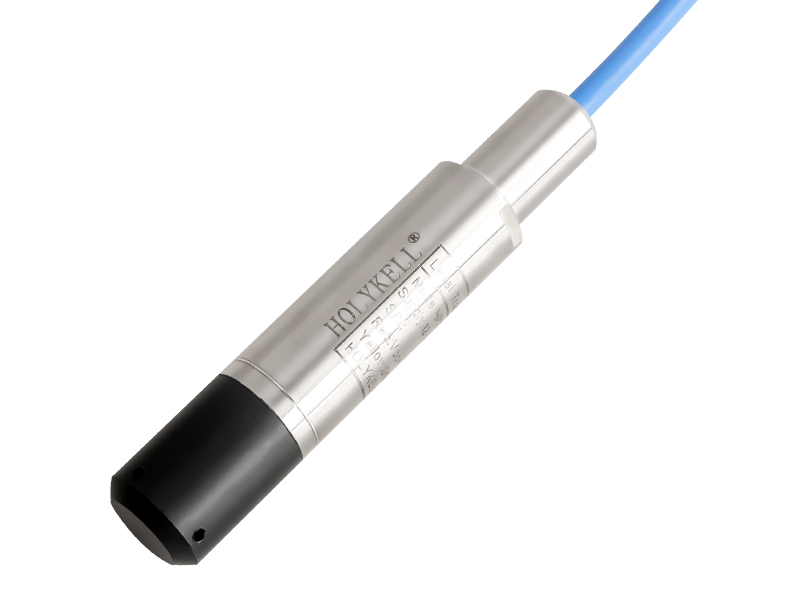

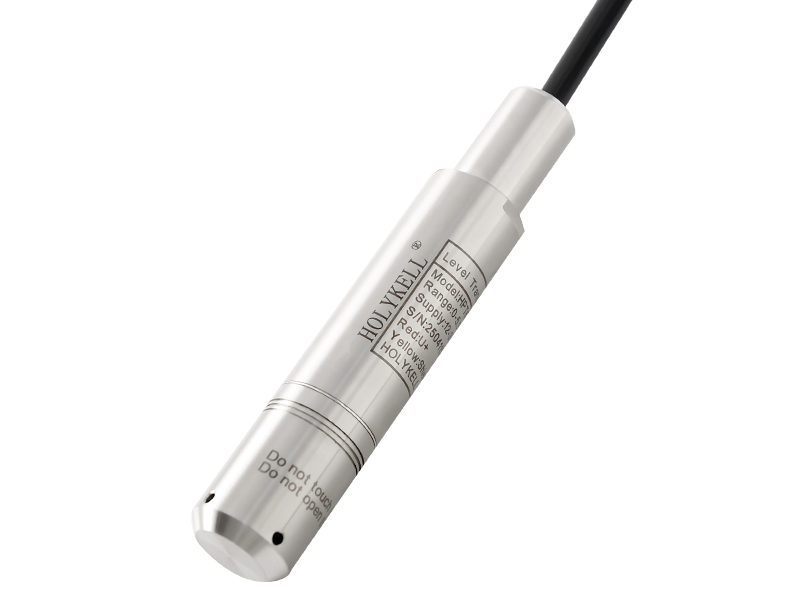

HPT604-BL Submersible Diesel／Gasoline Level Transmitter

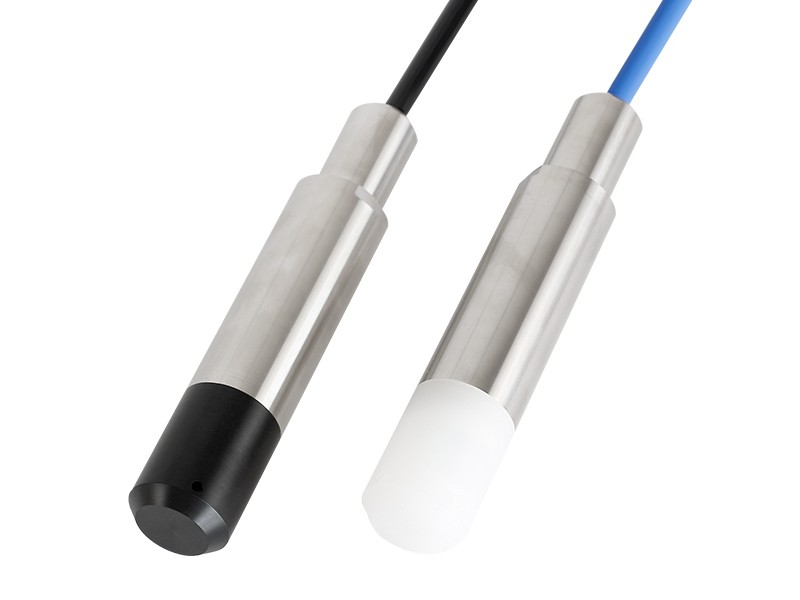

This submersible level sensor adopts SUS304 stainless steel housing and a filter cap(two kinds of filter caps optional), and can be put in water/oil/fuel/chemical tanks or reservoir directly for liquid level measurement. It features high corrosion-resistant and can be used in explosive environment.
Application :
●Water tank level measurement and control
●Fuel tank level measurement(diesel, gasoline, kerosene...)
●Refinery
●Bio-Fuels
●Pumping stations
Advantages
01Hydrostatic sensor for measuring level of small diesel tank
02High accuracy up to 0.25%F.S
03Adopting diffusion silicon sensor
04High quality PUR/FEP cable with strong water and fuel resistance
05Digital circuit board of lightning and surge protection for use in harsh environment
Resources
Technical Data
|
Pressure Range |
0-0.1Bar…..2 bar / 0-1m…20m fuel level Optional 80m max for SDI-12 signal |
|
Accuracy |
Better than ±0.25%F.S @25 degree C |
|
Long Stability |
≤ ±0.1% of span/year |
|
Working Temp. |
-30-80℃(non-corrosive medium) |
|
Temperature Compensation |
-40℃~80℃ |
|
Medium compatible |
Compatible with 304 Stainless Steel |
|
Output signal |
4-20mA,1-5V; 0-5V,0-10 V,Dual 4-20mA,SDI-12,RS485 Modbus... |
|
Power Supply |
7-30Vdc,8-30Vdc,13-30Vdc,12-30Vdc,12Vdc,3.5-36Vdc... |
|
Electronic connection |
Fixed cable and water proof IP68 |
