Submersible Hydrostatic Prussure Level Measurement Sensor Transducer Transmitter

May 30, 2023

hydrostatic level transmitter

hydrostatic level sensor certifications

hydrostatic pressure level sensor manufacturerHPT604 series submersible level transducer transmitter sensor is suitable for liquid level and depth measurement. It consists of an imported TE piezoresistive sensing element encased in 316L housing. Its all stainless steel, hermetically sealed housing makes it suitable to be immersed in deep liquid for a long time. The given measuring ranges are also available in mbar, kPa, MPa, mFuel, mH2O, and bar for immersion in different liquids, water, fuel, oils, etc.  Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. Units come equipped with a 270-pound tensile strength shielded and vented cable. The ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance-free filter eliminating particulate or water droplets from entering the transducer.  Holykell can provide a cost-effective solution for level monitoring for a variety of applications. Welcome your inquiry.

Click to Get Quotation

hydrostatic water level sensor

Click to Get Price Price

What You Can Benefit From HPT604 Submersible Level Transmitter?

✓  ​​ All welded 316L stainless steel construction

0 leakage, 0 penetration, corrosion resistant

Benefit: IP68 waterproof, safety, long time use in harsh environment

✓   Imported High Stability Chips

0.5%F. S(typical) 0.25%F. S(customized)

Benefit: Accurate measurement

✓  High-precision Industrial Circuit Board

Full temperature zone temperature compensation algorithm, small temp drift

Benefit: Good stability, reduced downtime and maintenance costs

✓  Vent Tube

Prevent water from entering the airway to form condensation and damage the circuit

Benefit: Anti-moisture, can work in humidity environment

✓  Low Power Supply

7-30VDC

Benefit: Suitable for low power supply system

✓   Lightning Protection

Can be used indoors or outdoors

Benefit: Suitable for any harsh environment

subemersible level sensors



Click to Get Quotation



Specification for HPT604 Submersible Level Sensor

water fuel level sensor

Range

0~0.5 M…500 M H2O optional;
80m max for SDI-12 signal;
0-0.05 Bar…..5 Bar / 0-0.5M……..50m fuel level

Power supply

7-30Vdc, 8-30Vdc, 13-30Vdc, 5Vdc, 12Vdc, 3.5-36Vdc...

Accuracy

 0.5%F.S standard, 0.25%F.S by customized

Electronic connection

Fixed cable and water proof IP68

Response time

≤10 ms

Output

4-20mA, 0-5V, 1-5V, 0-10V, 0.5-4.5V, SDI-12, RS485 Modbus RTU...



Factory Direct Sales, Support Customization!

hydrostatic pressure transducer OEM ODM

More special designs for the sensor can be customized

PU/PE/PTFE cable

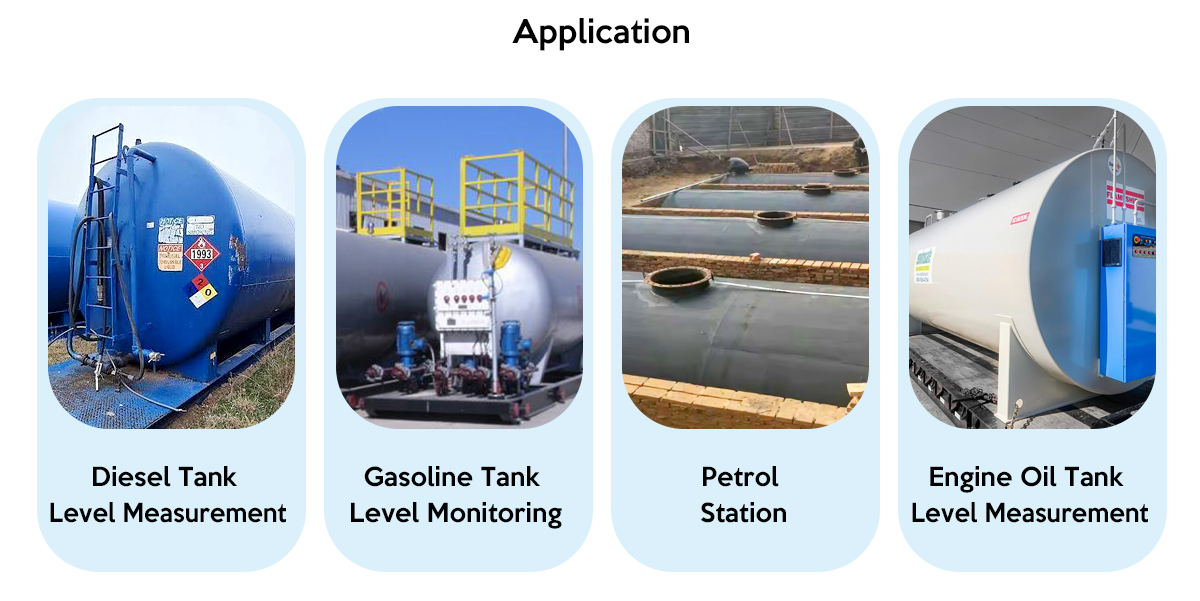

       Can be measured water/diesel /Kerosene/gasoline
    ✓Double output customized
      Double RS485 + temperature/Double digital output
    ✓Low power supply
      7-30v, 3.3v, 5v
   ✓Corrosion media housing selection
     316 stainless steel/ceramic /titanium alloy
