HPT604-BS Magnetic End Cap Fuel Tank Level Sensor
HPT604-BS is a fuel oil level sensor with a magnetic end cap. The design is to fix the level probe onto the fuel tank bottom so as to prevent it shaking in the oils and fuels and to eliminate safety risk, inaccurate measurement or sensor damage.
Application:
●Level Measurement in bio-fuels
●Monitoring of diesel fuel tanks
●Level Measurement in ballast tanks
●Level Measurement in oil tanks
●Level Measurement in water tanks
●Process control
Advantages
01Two different magnetic end cap designs for static and moving fuel tanks
02Imported piezoresistive sensor with high accuracy 0.5%F.S and good stability
03Harsh environment capable thanks to EMC anti-interference design, surge/lightning/overvoltage/ polarity/electrostatic protections
04Exia IICT6 approved with intrinsic safety explosion proof design
05Durable through comprehensive sealing process with resistance to moisture, mold & salt spray
Resources
Technical Data
| Pressure Range
|
0-0.05 Bar...5 Bar / 0-0.5M...50m |
|
Accuracy |
≤±0.5%F.S (1m to 50m range); ≤±1.0%F.S(0-1m range) |
|
Long-term Stability |
≤±0.2% of span/year |
|
Working Temp. |
-30-80℃(non-corrosive medium) |
|
Temperature Compensation |
0~50℃ |
|
Output |
4-20mA,1-5V,0-5V,0-10V,0.5-4.5V non-ratiometric,RS485 Modbus RTU |
|
Power Supply |
7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,3.5-36Vdc |
|
IP Rating |
IP68 |
|
Magnetic attraction force |
About 15-20Kg |
|
Electrical connection |
Direct cable outlet |

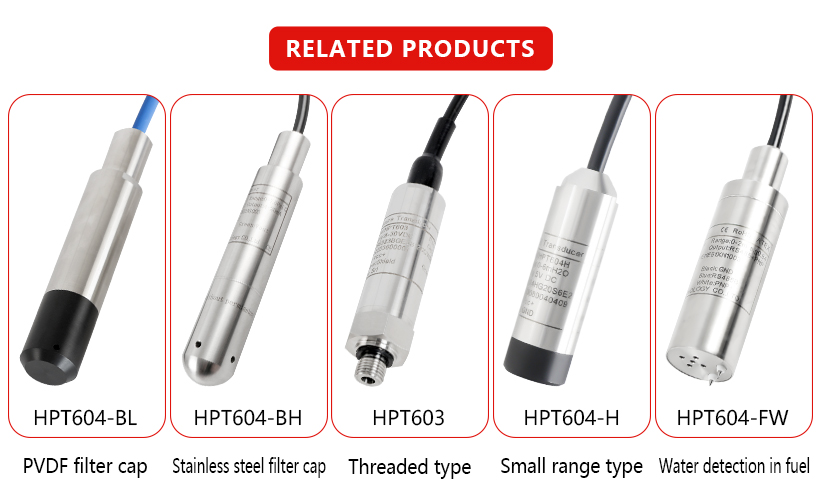

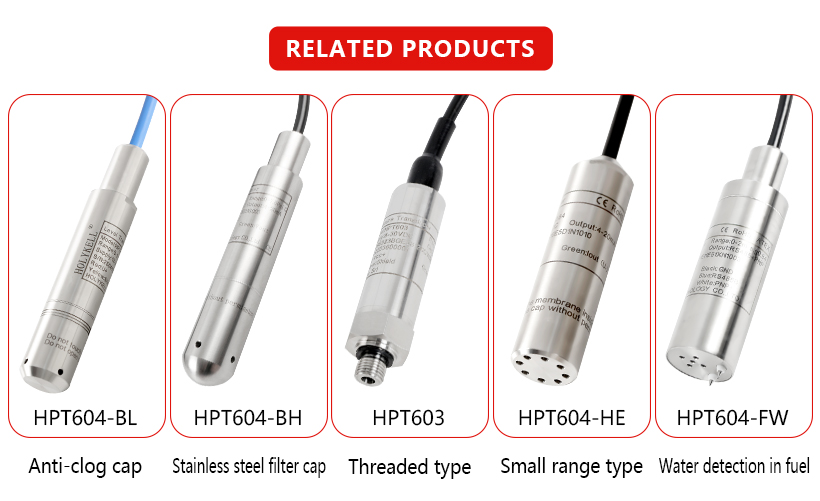

Related Products
