Diesel Tank Level Monitoring Solutions: A Comprehensive Overview

Mar 22 , 2024


With the development of technologies, industries where diesel storage is critical have higher requirements on accurate monitoring of diesel tank levels. For continuous level monitoring and control of diesel, various solutions are available,including submersible level transmitter, ultrasonic level transmitter, radar level transmitter, capacitive level transmitter, and magnetostrictive level transmitter.

Diesel, known as a flammable liquid(not classified as a highly explosive liquid), though has a high autoignition temperature and low volatility, making it less prone to spontaneous combustion under normal conditions, it still carries a certain risk of fire, especially when in contact with a ignition source or high-temperature surface. Besides, it has low dielectric constant and potential for foaming, therefore, these properties should be taken when selecting a level sensor to prevent fires and explosions.

Besides, diesel tanks come in various shapes and sizes, from small storage containers to large industrial tanks. They are often exposed to harsh environmental conditions and require robust monitoring solutions that can withstand temperature variations, corrosive elements, and mechanical stress.

Product Analysis

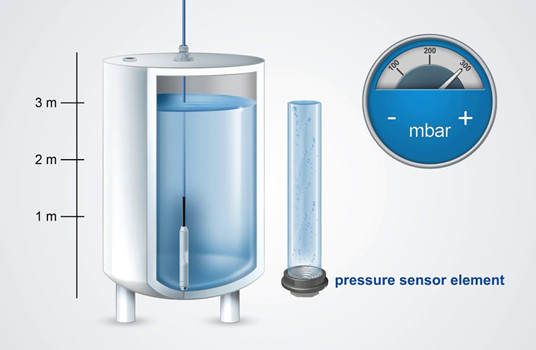

Submersible Level Transmitter

Advantage: Accurate and cost-effective solution suitable for large tanks.

Disadvantage: Requires installation inside the tank, which may pose maintenance challenges.

Recommendation: Ideal for large-scale industrial applications where cost-effectiveness is a priority.

Diesel Tank Level Monitoring Solutions

Capacitive Level Probe

Advantage: Suitable for both small and large tanks, resistant to harsh chemicals.

Disadvantage: May require periodic calibration to maintain accuracy.

Recommendation: Versatile option for diesel storage facilities with varying tank sizes and operating conditions.

Diesel Tank Level Monitoring Solutions

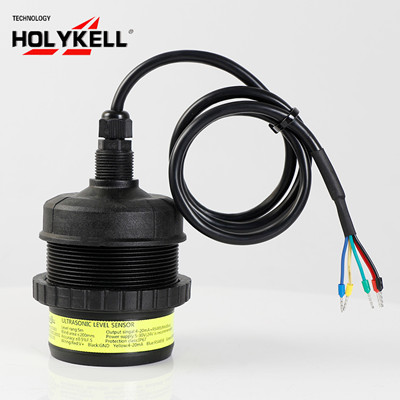

Ultrasonic Level Sensor

Advantage: Non-contact measurement method eliminates the risk of contamination.

Disadvantage: Susceptible to interference from foam and vapor, leading to inaccurate readings.

Recommendation: Suitable for outdoor tanks or applications where contactless measurement is preferred.

Diesel Tank Level Monitoring Solutions

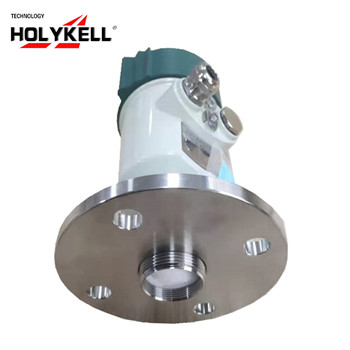

Radar Level Transmitter

Advantage: High accuracy and reliability, unaffected by environmental factors.

Disadvantage: Higher initial investment compared to other options.

Recommendation: Best suited for critical applications where precision is paramount, such as refineries or chemical plants and harsh environment.

Diesel Tank Level Monitoring Solutions

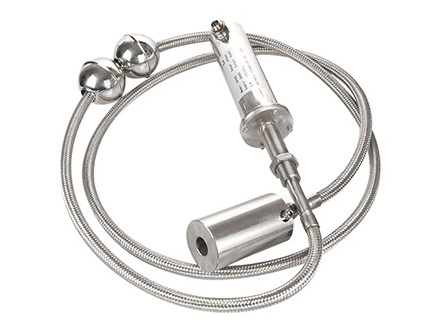

Magnetostrictive Level Transmitter

Advantage: Provides accurate and real-time level measurements with high repeatability.

Disadvantage: Relatively higher cost compared to other options.

Recommendation: Recommended for applications where precise monitoring and control are essential, such as fueling stations or power plants.

Diesel Tank Level Monitoring Solutions


Each level sensor offers unique advantages and considerations based on the specific requirements of the application. For diesel tank level monitoring, the best recommendation depends on factors such as tank size, environmental conditions, budget constraints, and the desired level of accuracy. It’s essential to carefully evaluate these factors and select the most suitable solution to ensure efficient and reliable diesel tank level monitoring.

Contact us today to explore how our solutions can elevate your diesel tank monitoring to the next level.
