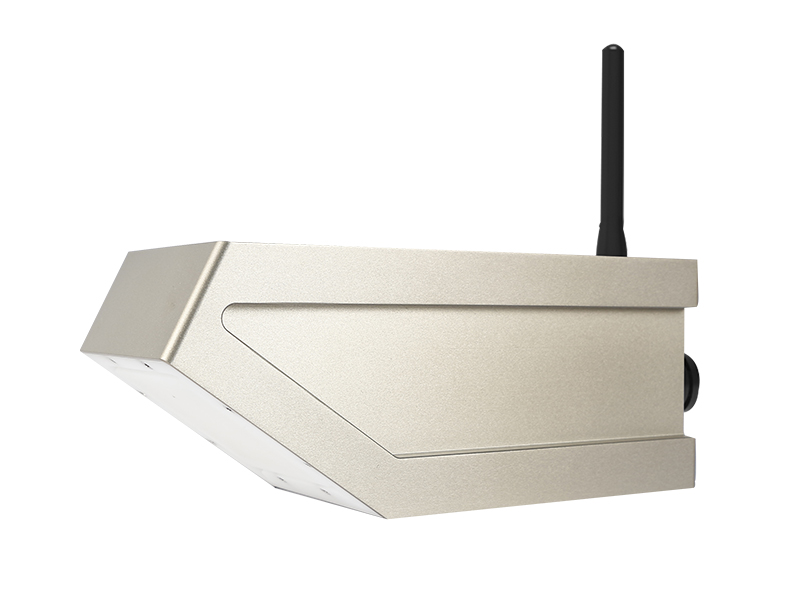

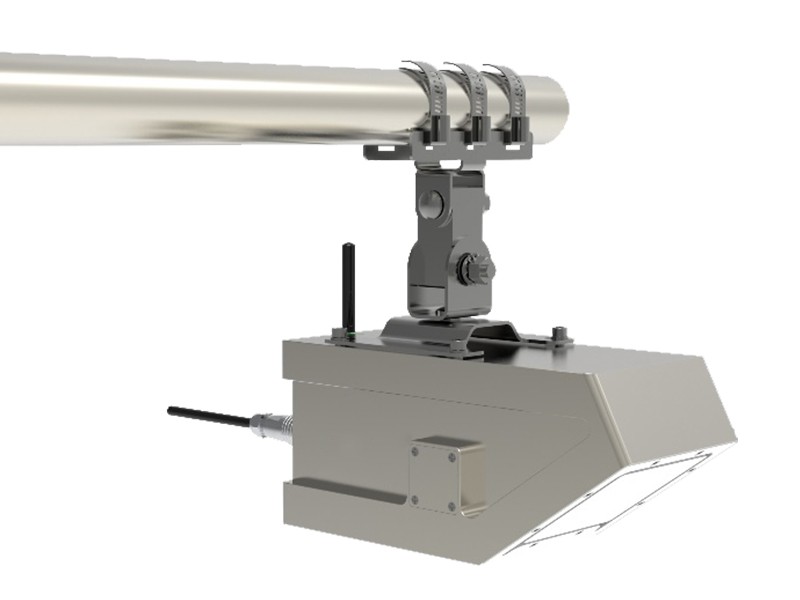

HRF600 24GHz Radar Flow Meter With Large Range
Radar flow meter with 24GHz is designed based on the measurement principle of frequency modulated continuous wave (FMCW). It can not only be used in a range of 40 meters, but also can measure speed and distance. Equipped with automatic recognition of water flow direction and built-in vertical angle correction function, it can be used for water level, velocity or flow measurement of other types of water treatment such as rivers, reservoir gates or sewers.
Application :
● River water level monitoring
● Reservoir flood control system
● Ecological discharge flow
● Monitoring of flow rate of agricultural water channels
● Sewage discharge control
Advantages
0124GHz frequency modulated continuous wave (FMCW), and output measurement data of flow velocity, water level, and flow rate at the same time.
02Non-contact measurement and IP68 waterproof (lightning protection design), not affected by bad weather and virus factors.
03With Bluetooth parameter adjustment function, it supports mobile phone APP to wirelessly configure and maintain the device on-site.
04Optional RTU function to support remote upgrade and remote maintenance of equipment.
Resources
Technical Data
| Item | HRF-600/HRF-600-R |
| Versions | HRF-600(Stanard version) HRF-600-R(RTU version): Support parameter adjustment by bluetooth; wireless configuration and maintenance by mobile phone; equipment remote upgrade |
| Velocity Measurement System | |
| Measuring Principle | Planar microstrip array antenna CW+FMCW |
| Operating Mode | Manual, automatic, telemetry |
| Applicable environment | 24-hour, rainy days |
| Operating temperature | -30~80℃ |
| Operating Voltage | 7-32VDC;5.5-32VDC(Optional) |
| Working current | For 12VDC input, operating mode: <150mA Standby mode: <1mA |
| Ambient temperature output | Temperature resolution 0.1℃; temperature measurement accuracy ±1℃ |
| IP Rating | IP68 |
| Radar Wave Velocity Meter | |
| Radar power | 100mW |
| Radar frequency | 24GHz |
| Max measuring range | 40m |
| Velocity range | 0.03~20m/s |
| Velocity measurement accuracy | ±0.01m/s;±1%FS |
| Antenna angle | 12° |
| Measuring direction | Automatic recognition of water flow direction, built-in vertical angle correction |
| Radar Water Level Sensor | |
| Radar power | 100mW |
| Radar frequency | 80Ghz(7-40m) 60GHZ (under 7m) |
| Measuring range | 40 meters |
| Measurement accuracy | ±3mm,±2mm |
| Antenna angle | 11° |
| Data transmission system | |
| Data transmission | RS485 (default), RS232 (reserved), 4~20mA, 433MHz (optional), 4G (optional), NB-IoT (optional) |
