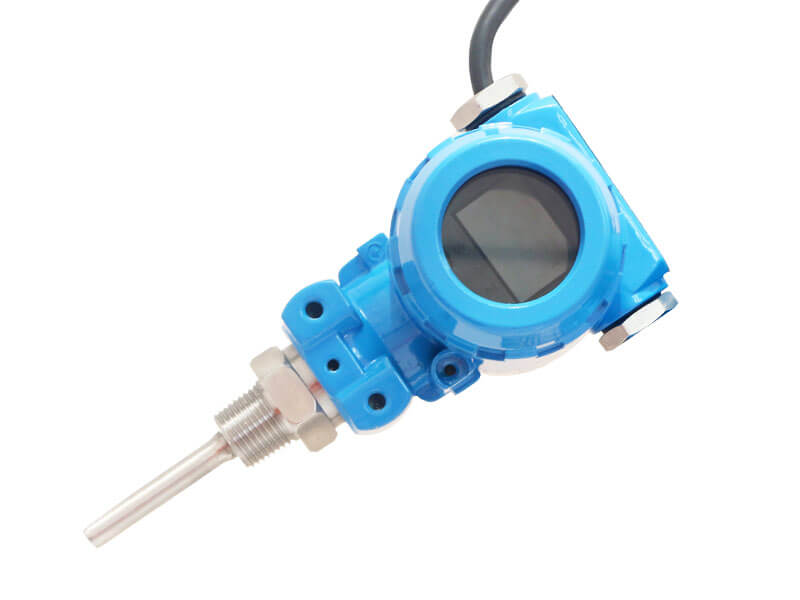

HTS201 Explosion-proof type Temperature Transmitter
HTS201 thermocouple (resistance) integrated temperature transmitter. It consists of a thermocouple, a thermal resistance and a temperature transmitter module. It uses a two-wire system with a nonlinear correction circuit to directly measure liquids, gaseous media.
Application :
● Petroleum
● Chemical
● Metallurgy
● Electric power
● Light industry
● Textile
● Food and other industries.
Advantages
01High-precision cold junction compensation circuit with compensation accuracy of ±0.5°C over the full temperature range.
02Unique nonlinear correction circuit, the output signal is linear with the measured temperature.
03Internal drift self-calibration system guarantees accuracy over the entire operating temperature range.
Resources
Technical Data
|
Parameter: |
HTS201 |
|
Measurement Range (Degree C/ ℃): |
-50～0; -50～50; 0～80; 0～100; 0～120; 0～150; 0～200; 0～250; 0～300 optional |
|
Installation Type: |
Insert type |
|
Probe length: |
50 mm or customized |
|
Probe Dimension: |
Φ8 |
|
Sensor Type: |
PT100; Pt1000 |
|
Signal Output: |
4-20 mA + HART or 4-20 mA +RS485 optional |
|
Signal wires type: |
2 to 4 wires |
|
Power supply: |
24Vdc |
|
Accuracy: |
±0.5%F.S. |
|
Working pressure: |
40Bar (standard); 300 Bar (customized) |
|
Long time stability: |
0.1%F.S. |
|
Response time: |
T=50 2.3S; T=90 5.4S |
|
Electronic proof: |
Reverse polarity protection; Overload voltage protection (standard); surge protection (customized) |
|
Environment temp: |
-40～85 Degree C |
|
Storage temp: |
-40～125 Degree C |
|
Materials of housing: |
316L Stainless Steel |
|
Materials of process: |
316L Stainless Steel |
|
Water proof grade: |
IP67 |
|
Explosion Proof: |
Yes |
|
Display Units: |
LED Indicator Local Display Temp and Panel with 3 keys for Zero and Span setting |
