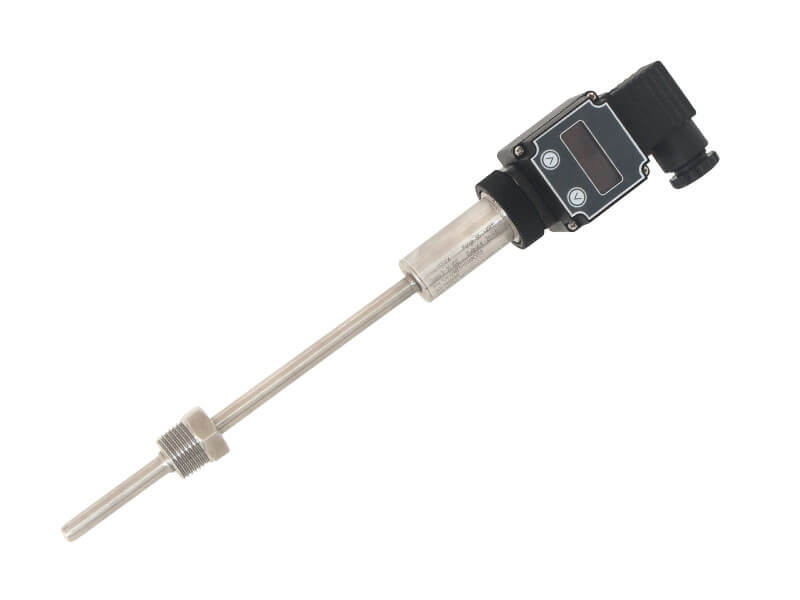

Integrated With Local Display Type Temperature Sensor
Temperature Transmitter with Display hermetically sealed housing make it suitable the given measuring ranges are also available in mbar, kPA and MPa.for immersion in most industrial liquids and oils.
Application :
● Pipeline and ventilation system
● Hydraulic and pneumatic system
● Petrochemical industry
● Hydraulic and pneumatic systems
● Cooling system
● Heating system
● Air conditioning system(HAVC)
Advantages
01Simple installation and multifarious-temp scope
02Gas and liquid medium available
03Medium compatible 316L stainless steel
04Excellent long time stability and lower consumption
05Smaller diemension and compact structure
06Response fast and high accuracy
Resources
Technical Data
|
Parameter: |
HTS101 |
HTS102 |
HTS103 |
HTS104 |
|
Measurement Range (Degree C/ ℃): |
-50～0; -50～50; 0～80; 0～100; 0～120;0～150 0～200 optional |
0～250; 0～300; 0～400 optional |
-50 to 400 optional |
|
|
Installation Type: |
Insert type |
Insert type |
Insert type |
Insert type |
|
Probe length: |
50 mm or customized |
50 mm or customized |
50 mm or customized |
50 mm or customized |
|
Probe Dimension: |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
Φ6; Φ8 optional |
|
Sensor Type: |
PT100; Pt1000 |
PT100; Pt1000 |
PT100; Pt1000 |
PT100; Pt1000 |
|
Signal Output: |
resistive signal |
4-20 mA 0-5V 0-10V |
||
|
Signal wires type: |
2 wires or 3 wires |
2 wires |
3 wires |
|
|
Power supply: |
NA |
9～30Vdc |
18～30Vdc |
|
|
Linear: |
±0.1%F.S.; ±0.25%F.S.; ±0.5%F.S. Optional |
|||
|
Working pressure: |
40Bar (standard); 300 Bar (customized) |
|||
|
Long time stability: |
0.1%F.S. |
|||
|
Response time: |
T=50 2.3S; T=90 5.4S |
|||
|
Electronic proof: |
NA |
Reverse polarity protection; Overload voltage protection (standard); surge protection (customized) |
||
|
Environment temp: |
-40～85 Degree C |
|||
|
Storage temp: |
-40～125 Degree C |
|||
|
Materials of housing: |
316L Stainless Steel |
|||
|
Materials of process: |
316L Stainless Steel |
|||
|
Water proof grade: |
IP65 |
|||
