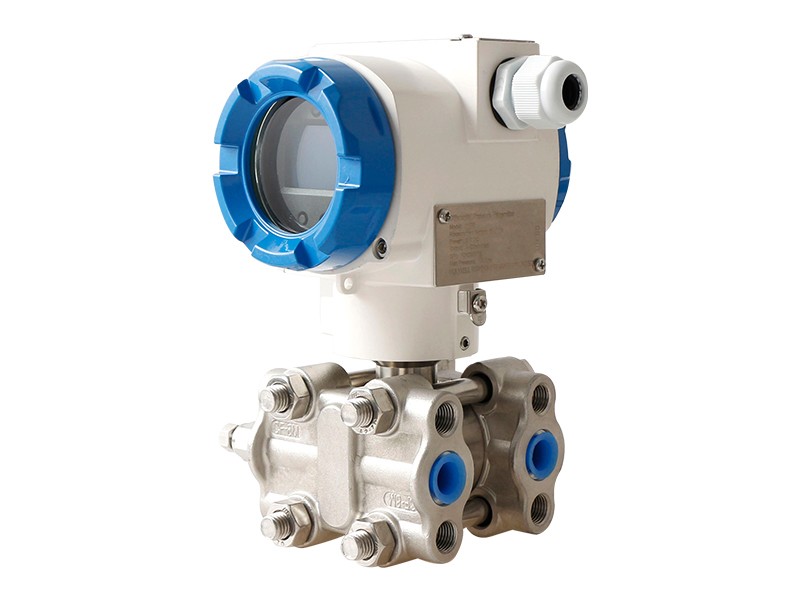

HK55 Mono crystalline Silicon Differential Pressure Transmitter
High Stability Monocrystalline Silicon pressure Transmitter featuring standard DP-Style design. With its 4 ... 20 mA, 4 ... 20 mA HART, PROFIBUS PA or FOUNDATION Fieldbus output signals, combined with either intrinsically-safe or flameproof ignition protection (in accordance with ATEX).
Application :
● Hazardous area
● Differential pressure in gases, steams
● Level, volume or mass measurements in liquids
● Aerospace
● Automotive
● Medical equipment
● HVAC
Advantages
01Flexible range compression
◆ Micro range (0...6kPa) ratio: 3:1
◆ Medium range ratio: 10:1
◆ Maximum range ratio: 10:1
02Excellent operability and ease of use
◆ 5 digits with backlit LCD digital display
◆ Multiple display functions (Pa, kPa, MPa, %, psi)
◆ Built-in three-button shortcut operation in-place adjustment function
◆ Available in various anti-corrosion materials
◆ Comprehensive self-diagnosis function
Resources
Technical Data
|
Pressure range |
0- 5Kpa...40Bar |
|
Output |
4~20mA,Hart Protocol |
|
Display |
LCD |
|
Power supply |
12VDC~36VDC |
|
Pressure port |
M20*1.5 |
|
Accuracy |
0.075 %F.S |
|
Working temperature |
-30°C~+400°C |
|
Certificate |
CE,ExiaII CT6 Ga ,ATEX,RoHS |
