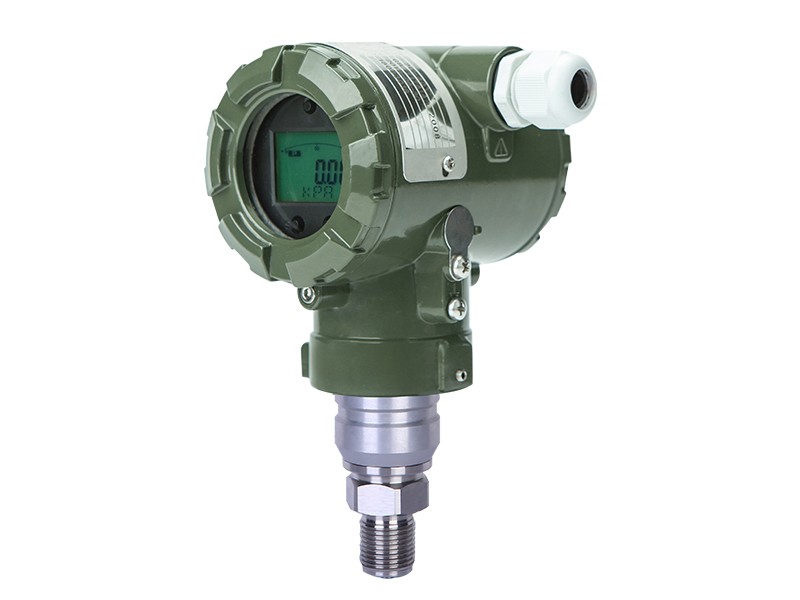

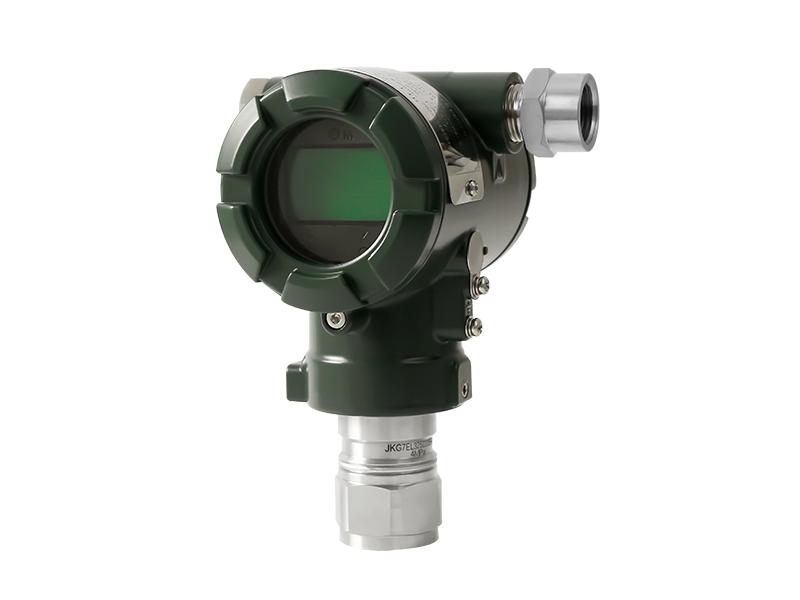

HK71 Monocrystalline Differential Pressure Transmitter

HK71 In-Line Monocrystalline differential pressure transmitters are the industry standard for gage and absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Application :

● Hazardous area

● Absolute and gauge pressure in gases, steams

● Level,volume or mass measurements in liquids

● Aerospace

● Automotive

● Medical equipment

● HVAC

Advantages
01Measures Gauge/absolute pressure
02High accuracy, better reliability and intrinsically safety
03Supports HART, FF, Profibus PA, Profibus DP protocol
04Accuracy: ±0.075% (20°C, range rate10:1)
05Easy installations without need for heat tracing and insulation
Resources

Technical Data

Pressure range

~100~40000KPa

Output

4~20mA,Hart Protocol

Display

LCD,OLED

Power supply

10VDC~36VDC

Stability

0.1%/3 years

Accuracy

0.2%,0.075%,0.1%

Medium temperature

-40°C~+120°C

Certificate

Exd II CT6, Exia II CT4
