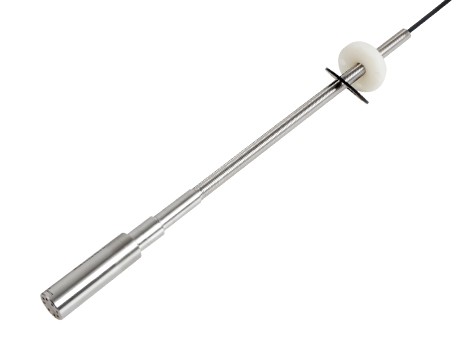

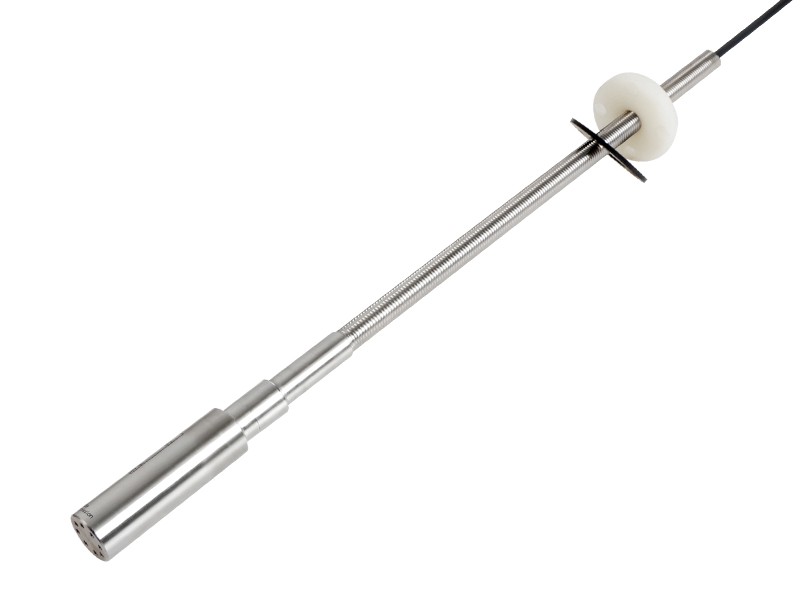

HPT604-GT Fuel Level Sensor for Generator Lower Fuel Tanks

This submersible fuel level sensor features high accuracy and high stability though low level in vibrating tanks. Its unique height adjustable design and fully welded structure enable it to work in different sizes of tanks for a long time.

Application :

●Diesel generators

●Fuel tanks or diesel tanks

●Refinery

●Fuel/oil/diesel/petrol level measurement



Advantages
01Stability and accuracy improved with probe and cable fixed.
02Able to measure low fuel level in small or vibrating tanks.
03Suitable for different sizes of tanks.
04Adopt digital signal processing technology for good disturbance immunity.
05Custom service provided for specific applications.

Resources

HPT604-GT Fuel Level Sensor for Generator Lower Fuel Tanks

Technical Data

Parameter

HPT604-GT

Level Range

150…2500mm by customize for RS485 Modbus.

500…2500mm by customize for 4-20mA&0-5V

Accuracy

(Linearity/Hysteresis/ Repeatability)

Digital output: ≤±0.25%F.S;

Analog output:

≤±0.25%F.S (2m≤LR≤2.5m);

≤±0.5%F.S (1m≤LR<2m);

≤±1.0%F.S (0.5m≤LR<1m);

Including non-lin., rep. and hys. Optional; all based on 25degree C

Temp Compensation

0℃~80℃

Working Temp

-40-80℃(non-corrosive medium)

Medium compatible

Compatible with SUS304 Stainless Steel

Output

4-20mA,0-5V,0.5-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU

Power Supply

10-30Vdc,12-30Vdc,13-30Vdc,5Vdc±5%,12Vdc,12-30VDC,3.5-36Vdc

Electronic connection

Fixed cable

Response time

≤10ms

Pressure Type

Gauge pressure

Water Proof

IP68
