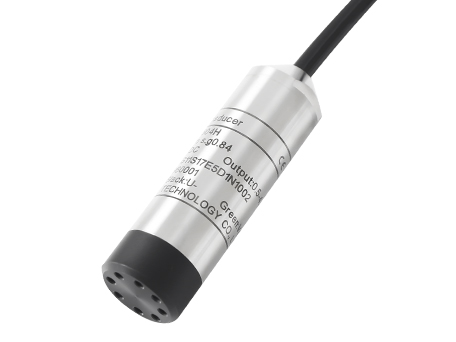

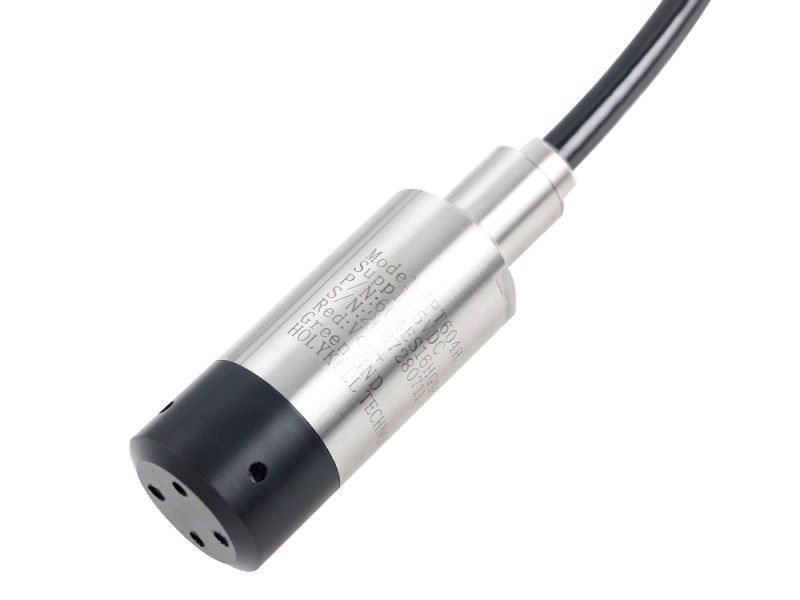

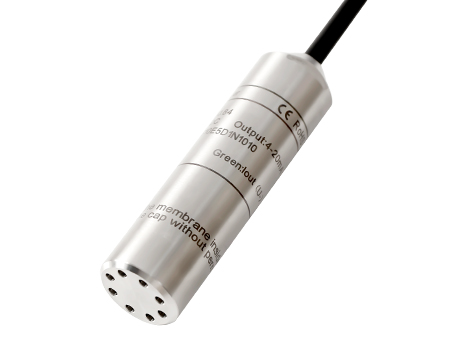

HPT604-H Water Level Sensor with Economical Model
The main advantages of the economical water level sensors are low price and high precision (0.25%FS). Unlike the submersible water level sensor, the filter cap of the sensor is made of PTFE, which can not only measure water, but also test oil.
Application :
●Urban and farm water systems
●Oil testing for Fuel/Oil/Diesel tank
●Agricultural irrigation
●Underground water level measurement
Advantages
01High accuracy up to 0.25%FS with MEAS TE silicon core.
02316L SS housing with Anti-corrosion cable(PE/PUR/PTFE)
03The filter cap of PTFE for water level measurement and oil testing.
04Small and high performance with the lowest cost.
Resources
Technical Data
|
Brand |
HOLYKELL |
|
Model |
HPT604H |
|
Range |
0~1 M...200 M H2O optional |
|
Output |
4~20mA, 0~5V, 0.5~4.5V, RS485, RS232, HART |
|
Power Supply |
12VDC~30VDC |
|
Accuracy |
0.15%F.S, 0.25%F.S, 0.5%F.S optional |
|
Working Temperaturet |
-30℃ ~ +85℃ |
|
Temp Compensation |
-10°C~60°C or by Customized |
|
Zero Temp. Drift |
0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa) |
|
FS Temp. Drift |
0.003%FS/°C(≤100kPa); 0.002%FS/°C(>100kPa) |
|
Response time |
≤4 to 10 ms; ≤1 ms (Customized) |
|
Certificate |
CE ATEX RoHS FCC Certification |
|
Application |
water,fuel, liquids, oil testing in fuel tanks |
