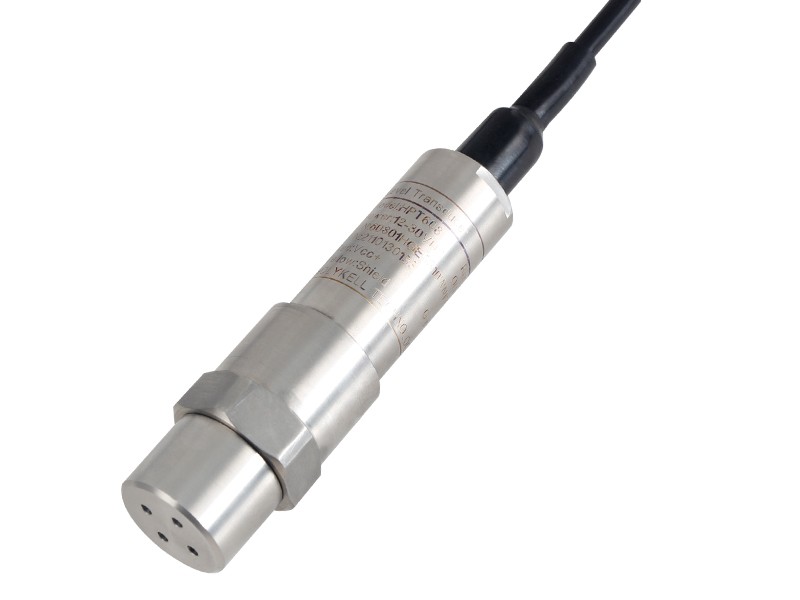

HPT608 Submersible Marine Level Sensor

Request Price PDF Download

Submersible Marine Level Sensor is mainly used to measure the liquid level of the ship's cabin and the ship's draft, so that we can know whether the ship is at the normal water level in time.

Application :

●Marine approved level sensor

●Classification society explosion proof certification approved

●Level measurement in seawater and vessel

●Ship draught measurement

●Sea Port wharf level measurement

Advantages

Resources

Technical Data

Advantages

01Classification society explosion proof certification approved

02All titanium alloy shell design, no fear of any seawater corrosion

03Fast response, suitable for noisy or adverse conditions

04Capacitive ceramic core with high accuracy 0.1%FS

05Corrosive materials and high quality polyethylene wire

Resources

Technical Data

Range	0~2 M…200 M H2O optional
Output	4~20mA (2 wires),RS485 RTU Modbus
Power supply	12VDC~30VDC
Body Material	316L Flush diaphragm ,316 SST ,Titanium Alloy
Accuracy	0.1%F.S;0.25%F.S optional
Working temperature	-20°C~+80°C
Temp Compensation	-20°C~70°C
Zero Temp. Drift	0.03%FS/°C（≤100kPa）; 0.02%FS/°C（>100kPa）
FS Temp. Drift	0.003%FS/°C（≤100kPa）; 0.002%FS/°C（>100kPa）

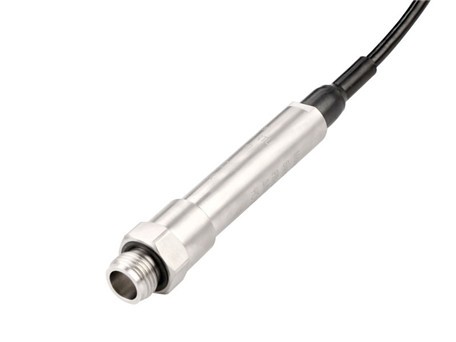

Process mounting	Filter Cover; G1/2’’ Female thread;
	Flush Diaphragm O-rings Mounting optional
Dimension	Length: 140 mm (standard); Body diameter: 25-40 mm (standard)
Certificate	CE,ExiaII CT6 Ga ,ATEX,RoHS
Application	Marine and Vessel application
