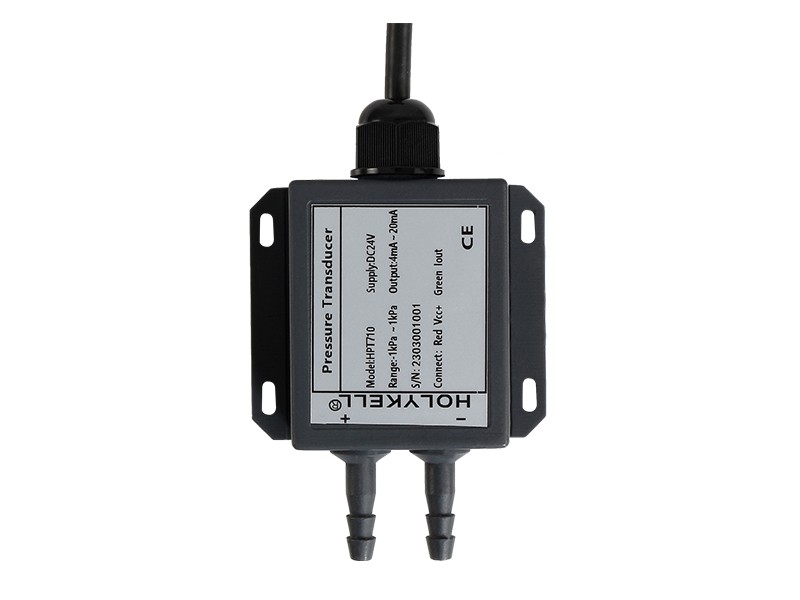

HPT710 Micro Differential Pressure Transmitter
HPT710 is a micro differential pressure transmitter that can accurately and stably provide differential pressure with a wide application range. It adopts advanced silicon MEMS micro-pressure chip, and temperature compensation and linear compensation, signal amplification processing. Different outputs including 4~20mA, 0.5V~4.5Vdc, I2C and RS485 are supported.
Application:
●Wind pressure measurement
●HVAC system and air purification equipment
●Pipeline velocity test
●Fan operation detection
●Medical and chemical industry
●Pure plant and building automation
Advantages
01Wide measuring range
02Explosion-proof performance supported
03High stability with low drift
04Linear compensation
05Broad range of temperature compensation
06Durable structure, >10 million load cycles
Resources
Technical Data
|
Measuring range |
0Pa~±100Pa, 500Pa …1000Pa; 0kPa~2kPa,10kPa…100kPa |
|
Pressure type |
Differential pressure, gauge pressure |
|
Accuracy |
±0.5%F.S, ±1.0%F.S |
|
Signal output |
4mA~20mA,0.5V~4.5Vdc,I2C,RS485 |
|
Power supply |
12V~30Vdc,5V~30Vdc,3.3V~5Vdc,5V~30Vdc |
|
Electrical connection |
Direct cable outlet |
|
Measuring medium |
Non-corrosive gases |
|
Medium temperature |
-40℃~85℃ |
|
IP Rating |
IP66 |
