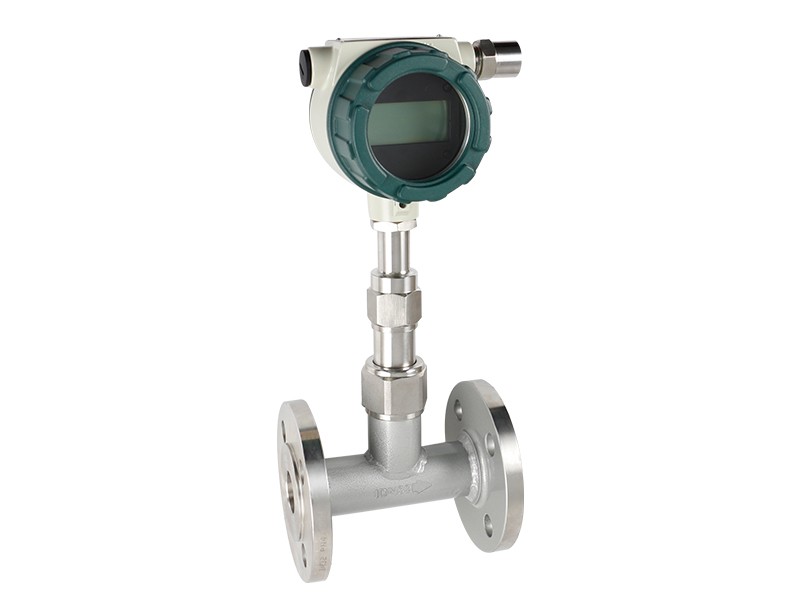

HTF Target Flow Meter
Target flow meter is developed based on the measurement principle of the strain gauge (capacitive) target flowmeter. It uses a new type of force-sensing sensor as the measurement and sensitive transmission element, and at the same time a new type of flow meter developed by modern digital intelligent processing technology.
Application :
●Natural gas, flare gas, and other gas flow measurement
●Compressed air measurement
●Oxygen, nitrogen, hydrogen, chlorine and multi-component gas measurement
●Aeration and chlorine measurement in biogas and water treatment
●Pipeline transportation
Advantages
01The whole machine can be made into a fully sealed, no dead angle (welded form), without any leakage points, and can withstand high pressure of 42MPa.
02With integrated temperature and pressure compensation, directly output quality or standard.
03The measuring range can be changed by replacing the baffle (target) according to actual needs.
04Low-power battery on-site display, can directly read the displayed value online, and the display can read instantaneous and cumulative flow and percentage diagrams at the same time.
Resources
Technical Data
|
PROCESS FLUID |
Liquid/Gas/Steam |
||||||
|
NOMINALDIAMETER (mm) |
Pipe type 15～300 |
Clamp on type 15~600mm |
Insertion type 100~2000mm |
||||
|
NOMINAL PRESSURE |
0.6~42MPa |
0.6~42MPa |
0.6~42MPa |
||||
|
MEDIUM TEMPERATURE |
-196℃～+450℃(Determine the temperature range when ordering) |
||||||
|
ACCURACY |
±0.2% |
±0.5% |
±1.0% |
±1.5% |
±2.5% |
||
|
RANGE RATIO |
1:3 |
1:5 |
1:20 |
1:20 |
1:20(steam) |
||
|
REPEATABILITY |
0.05%～0.08% |
||||||
|
POWER SUPPLY |
lithium battery (3.6V), external power supply 24VDC |
||||||
|
OUTPUT SIGNAL |
Site value display, 4 ~20mA, pulse, 1-10V, RS485/RS232, HART |
||||||
|
MEASURING TUBE MATERIAL |
304SS;316L, Carbon steel or by customized |
||||||
|
EXPLOSION PROOF CLASS |
ExibIICT4, ExdIICT4 |
||||||
|
IP RATING |
IP65, IP67, IP68 |
||||||
