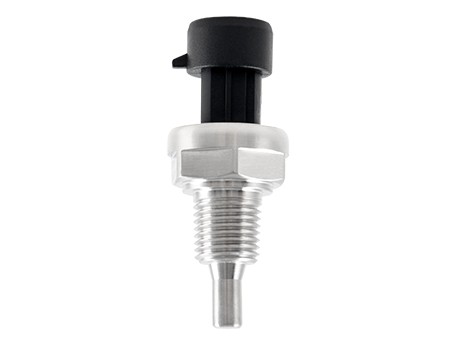

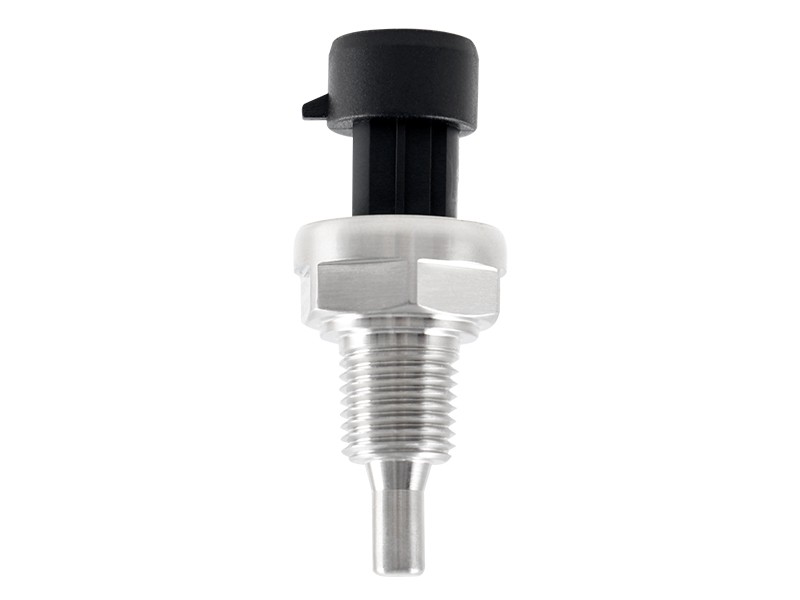

HTS101 New High Performance Temperature Sensor
Application:
●Air compression system
●HVAC system
●Pipeline and ventilation system
●Cooling system
●Automatic system
Advantages
01Low consumption
02Fast response
03Wide working temperature
04Simple to install
05Automotive compensation digital circuits
Resources
Technical Data
|
Range |
0~100℃/ -20~100℃/ -30~125℃/-40~150℃/-50~150℃/ -50℃~200℃(by customized) |
|
Sensor type |
Thin film Pt100 resistor |
|
Accuracy |
Class A (±0.15%+0.002｜t｜) |
|
Output signal |
Resistance value |
|
Response time |
15s (typical) |
|
Insulation resistance |
≥100MΩ (500V DC) |
|
Insulation class |
2.5KV DC |
|
Shell material |
304 stainless steel |
|
Outlet method |
Packard 3 pins connector directly outlet |
|
Outlet cable length |
Non-cable (typical) or by customize cable length. |
