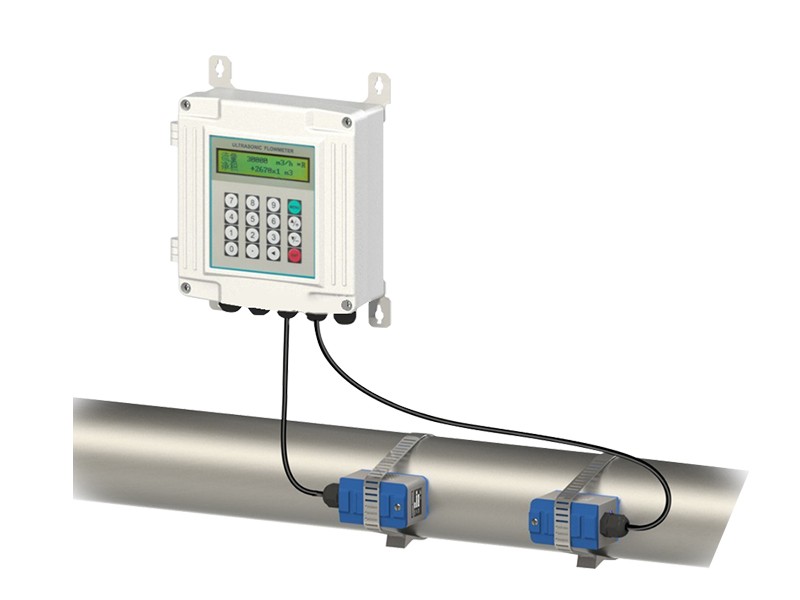

UF2000SW Clamp-on Ultrasonic Water Flow meter

The wall-mounting ultrasonic water flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Application :

● Water (hot water, chilled water, city water, sea water, waste water, etc.)

● Chemicals (alcohol, acids, etc.)

● Plant effluent

● Beverage, liquid food

● Ultra-pure liquids

Advantages
01Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ±1%
02Easy to operate
03Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm
04Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability
05Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years
Resources

Technical Data

Model

UF2000SW

Type

Separated Wall Mount

Pipe Size

32-6000mm

Working tempe

-30°C~90˚C

High-temperature

-30°C~160˚C

Flow output signal

0~10mA/4~20mA /Pulse/MODBUS/HART

Supply voltage

AC220V or DC24V

Linearity

0.5%, Repeatability: 0.2%, Accuracy: ±1%

Powerful Recording Function,last 64 days/64 months/5 years
