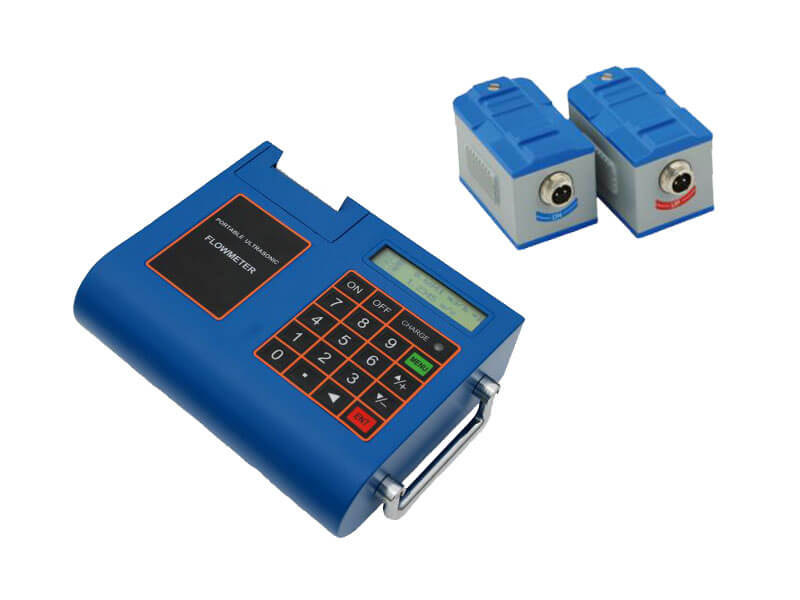

PUF Ultrasonic Water Flowmeter with Printer
Printer Ultrasonic Water Flowmeter advanced circuit design, the integration of the latest semiconductors, the user-friendly software interface both in English and Chinese languages and small-sized PCB board.
Application :
● Water supply
● Sewage treatment
● Sea water desalination
● Pure water
● Ultra-pure water
● Industrial circulating water
● Diesel fuel, oil flow metering, etc
Advantages
01Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation.
02Built-in printer: Built-in mini thermal printer with instant and timing print function, also you can print more than 20 kinds of measuring results if you set in advance.
03Built-in data logger: Uplink over 20 measuring data to computer or internet.
Resources
Technical Data
| Items | Spec |
|
Main Unit | 2 line x 20 character LCD with backlight Working temperature: -20--60℃ Working temperature: -20--60℃ Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS485 serial port, can download the newest software upgrading on our company's website |
|
Transducers | TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature ≤110℃ DN15-100mm, liquid temperature ≤110℃ TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature ≤110℃ size:DN50-1000mm, liquid temperature ≤110℃ |
| Liquid types | Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave. |
| Flow velocity range | 0-±30m/s |
| Accuracy | Better than ±1% |
| Power Supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) orAC 220V |
| Power Consumption | 1.5W |
| Charging | Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light |
| Weight | Net weight: 2.5kg (main unit) |
| Remarks | With a high strength carrying case suitable for normal and harsh environment |
