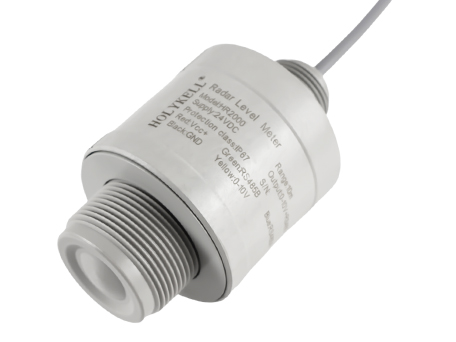

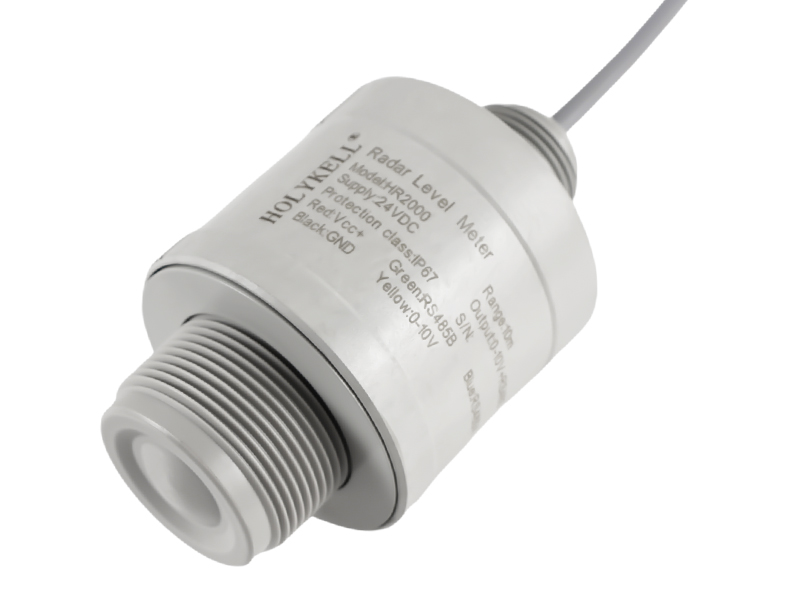

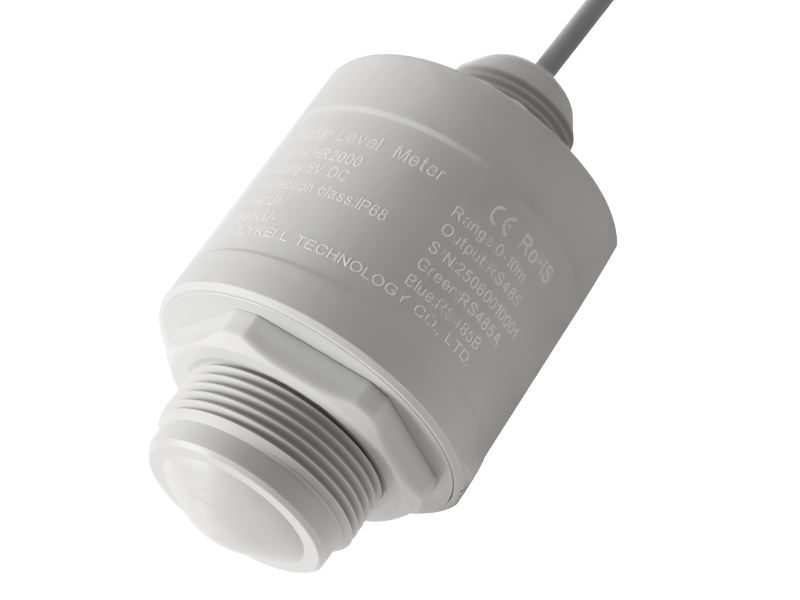

HR2000 80GHz High Accuracy Radar Level Sensor
The HR2000 is a 80GHz mmWave radar level sensor. Its advanced radar technology and user-friendly PC interface ensure precise measurements, high sensitivity, and seamless integration. This non-contact sensor offers contamination-free, low-maintenance level monitoring solutions. Its compatibility with control systems allows for effortless integration into industrial processes, enabling remote monitoring and control, ideal for various industrial applications.
Application:
●Water & Sewage treatment
●Oil & gas industry
●Hydrological monitoring
●Pharmaceutical industry
●Food and beverage manufacturing
●Chemical industry
●Process control
Advantages
01±2mm/5mm/10mm accuracy with a wide detection range
02Advanced radar technology, unaffected by condensation, rain, vapor, corrosion, dielectric constants...

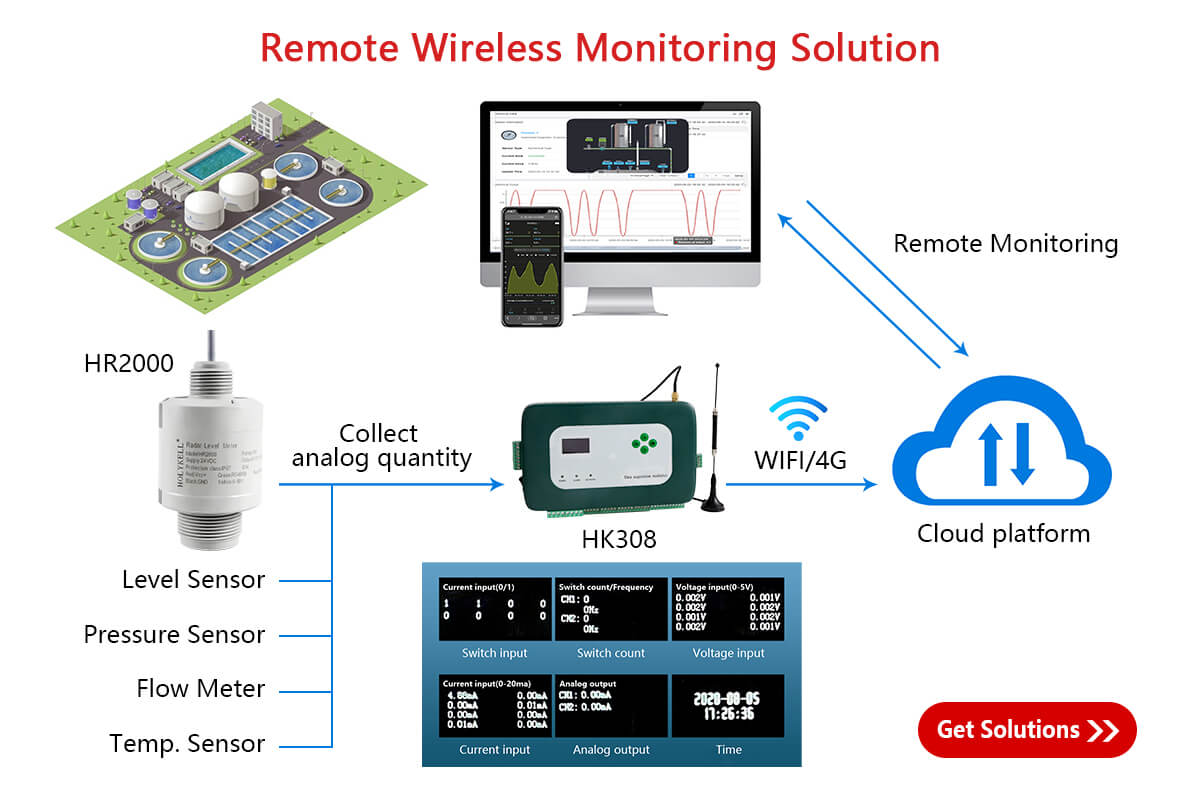

03Easily connects to host computers & tank-side meters with dedicated software
04A wide power supply range and minimized power consumption

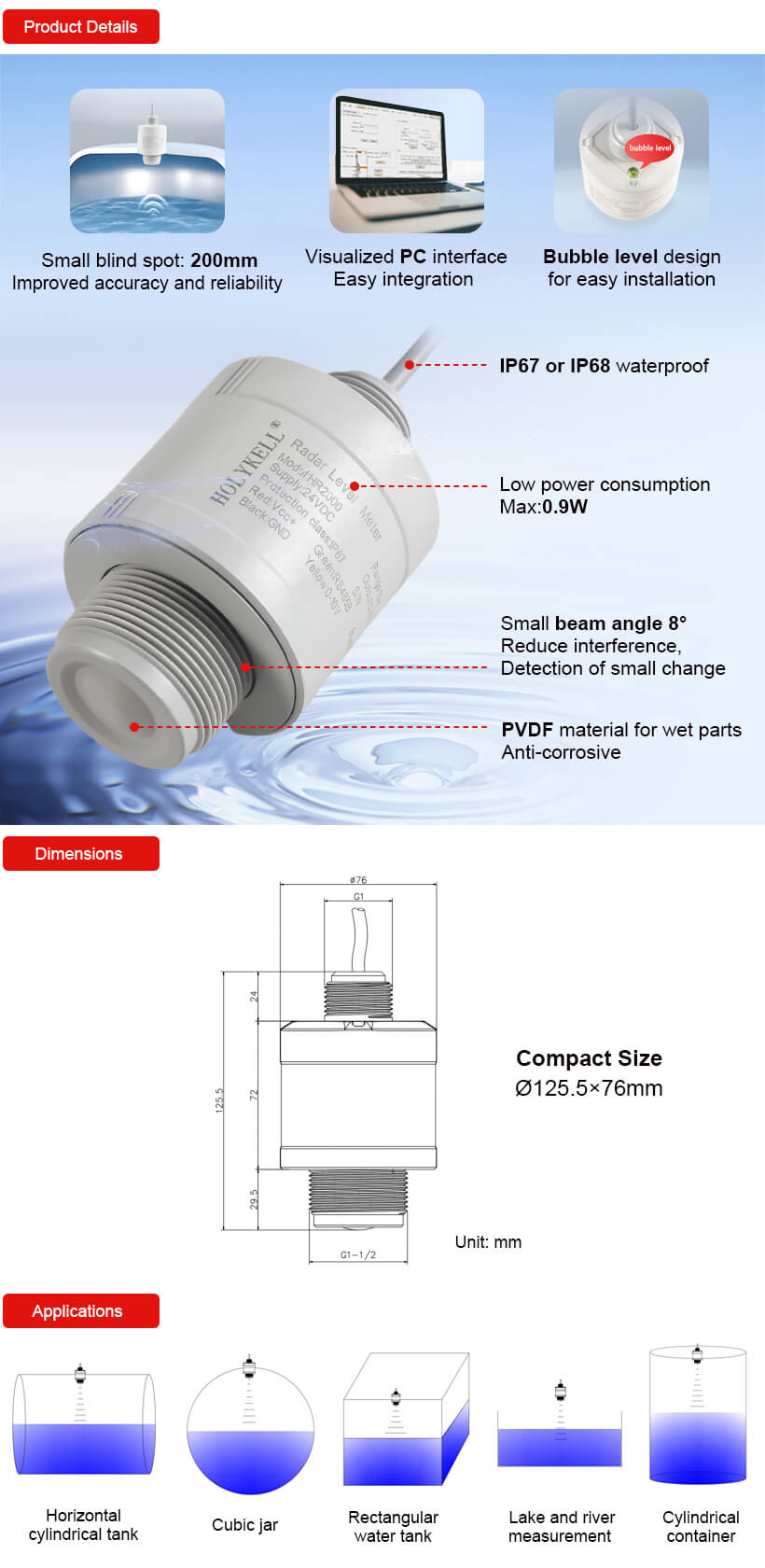

05A top-mounted bubble level design for straightforward setup
06On-site calibration not required
Resources
Technical Data
|
Working pressure |
-1~3bar |
|
Measuring range |
0.2-10m |
|
Measurement accuracy |
±10mm(typical), ±2mm/±5mm(customized) |
|
Frequency |
80GHz |
|
Signal output |
12-30Vdc: 0-5V/0-10V/4-20mA+RS485 Modbus RTU 3.3-4.2Vdc: RS485 Modbus RTU only |
|
Power Supply |
12-30Vdc(Typical type) 3.3-4.2Vdc(Low voltage & low power consumption type) |
|
Working temperature |
-40~85℃ |
|
Protection class |
IP67/IP68(3 bar) optional |
|
Material of wet parts |
PVDF(Anti-corrosion type) |
|
Material of housing |
PA6 nylon + Fiberglass |
