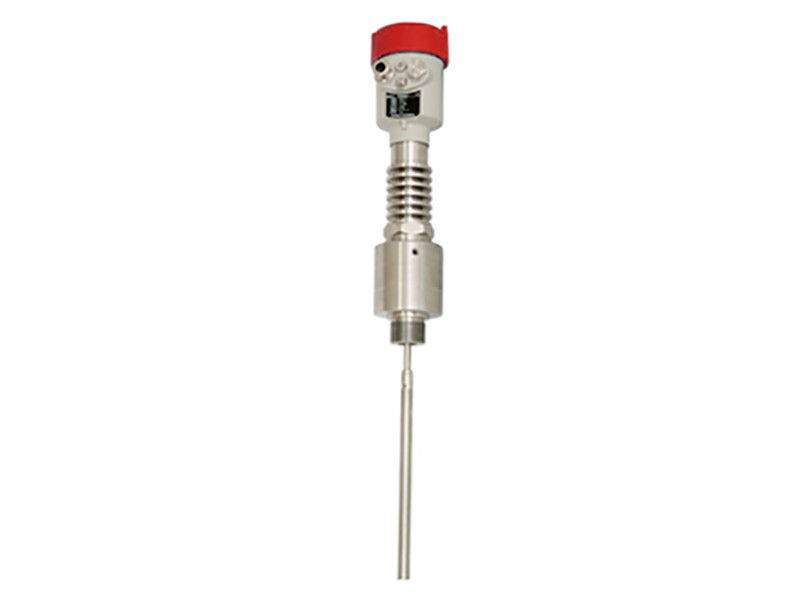

HR684 Radar Type Level Transmitter
Radar type level transmitter has strong and accurate NTS certified tape with stainless conductors. HR684 Radar Sensor special for Low Dielectric Constant Liquid measure.
Application :
●Deionized water
●Deoxygenated water
●Liquid Level
●Water level
●Fuel level
Advantages
01Non-contact radar, wear-resistant and no pollution
02High signal to noise ratio, even in the case of fluctuations can get better performance
0326GHz high frequency, compared with the low-frequency radar level meter, the measurement blind zone is smaller
04Using pulse mode, the radar level gauge has very low transmission power and no harm to human body and environment
Resources
Technical Data
|
Suitable for Medium |
Liquids, particularly low dielectric constant liquid |
|
Explosion-proof Grade |
Exia IIC T6 Ga/Exd ia IIC T6 Gb |
|
Measuring Range |
6m |
|
Frequency |
500MHz-1.8GHz |
|
Antenna |
Coaxial tube type antenna |
|
Accuracy |
±5mm |
|
Process Temperature |
（-40～250）℃ |
|
Process pressure |
（-0.1～2）MPa |
|
Signal output: |
（4～20）mA/HART |
|
The Scene Display |
Four LCD/Can be programmed |
|
Power Source |
Two-wire (DC24V) ;Four-wire（DC24V/AC220V） |
|
Shell |
Aluminum /Plastic |
|
Connection |
Thread / Flange (optional) |
