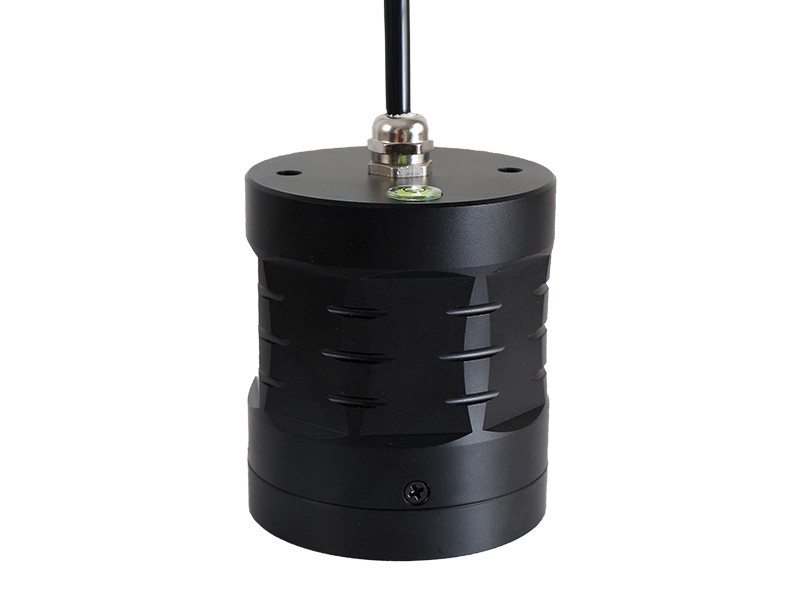

HR1200 60GHz Millimeter Wave Radar Level Sensor
HR1200 is a 60GHz millimeter wave radar level sensor. By adopting non-contact measurement, it is clean without much maintenance concern and is quite easy to install thanks to the bubble spirit level design. It features strong anti-interference ability and high accuracy, up to ±2mm and can detect small targets.
Application:
●Water treatment
●Water tank measurement
●Petrochemical storage tanks
●Pharmaceutical industry
●Food and beverage manufacturing
●Refining process vessels
●Hydroelectric power generation & dams
Advantages
01Compact size and easy installation
02Non-contact measurement adopted, without cleaning difficulty
03Receiving little impact by corrosion, foam, vapor,temperature & pressure changes
04Standard RS485 MODBUS protocol supported
05Connection of host computer setting software, tankside meter and others
06Wide power supply range with minimized power consumption
Resources
Technical Data
|
Measuring range |
0.2-12m for water 0.2-8m for diesel 0.2-6m for gasoline |
|
Measurement accuracy |
±2mm |
|
FOV angle |
8° |
|
Center frequency |
60GHz |
|
Communication rate |
Default 115200bit/s, 9600/19200/38400 free change |
|
Communication Mode |
RS485 MODBUS RTU |
|
Power Supply |
12Vdc recommended (9-24Vdc available) |
|
Operational temperature |
-40~85℃ |
|
Power consumption |
Minimum power:0.2W(8V*16.847mA) Maximum power:0.45W(12*36.168mA) |
|
Protection class |
IP68 |
