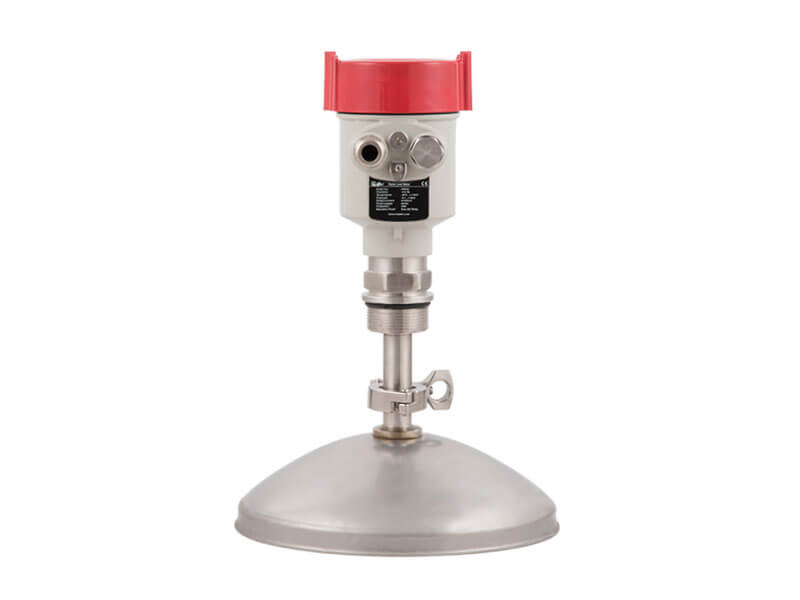

HR264 26G High Frequency Radar Level Sensor

High frequency radar level sensor radar meter can reach up to 70 meters. the instrumentation can be used for reactor, solid silo and very complex measurement environment.

Application :

● Solid material

● Process container or strong dust

● Strong dust

● Condensation occasions

● Liquid with foam

● Powder

01The measuring range up to 70m.
02Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
03Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
04Serious dust environment on the high level meter work has little effect.
05A shorter wavelength, the reflection of solid surface inclination is better.

Technical Data

Measurement Span

0 to 70 meters

15m/20m/35m/50m (powder);

70m (particle);

70m(lump materials)

Signal Output:

4...20mA/HART (2 wires/4 wires) RS485/Modbus

Process Connection

Multidirectional flange

Medium Temperature


Process Pressure

-1Bar~1 Bar



Proof Grade



DC24V or 85-265VAC

The Frequency Span

up to 26G Hz

Explosion proof grade

Exib ⅡCT6 G
