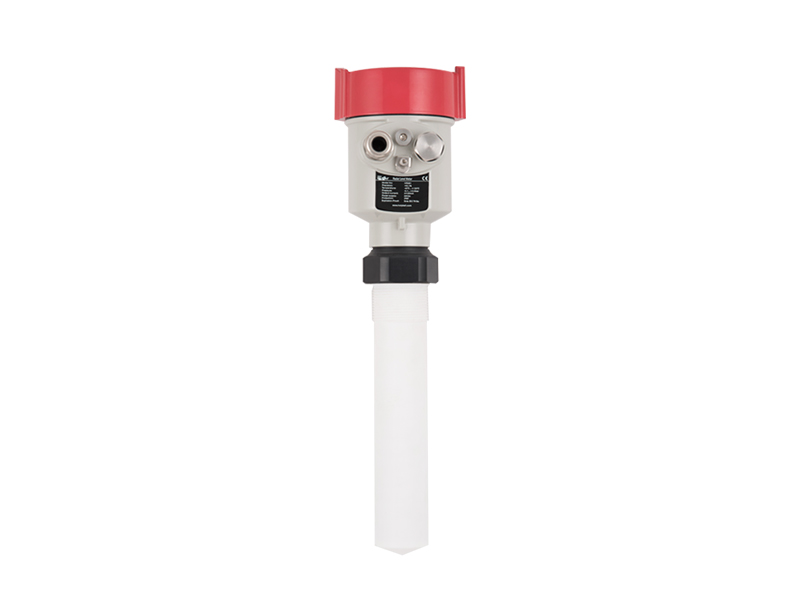

HR261 Radar Tank Level Sensor
Radar level probe is a time travel to the principle of measuring instruments, radar run at the speed of light, the running time can be converted into a level signal by electronic components.
Application :
●Solid
●Powder
●Wine
●Complicated process conditions
●Liquid Level
Advantages
01Antenna size is small, easy to install
02High Launch frequency up to 26GHz
03Fast response, suitable for noisy or adverse conditions
04The low noise ratio, even in case of fluctuations can get better performance
05Measure blind spots smaller canisters measure will achieve good results
Resources
Technical Data
| Application | All kinds of corrosive liquid |
| Measurement Span | 0 to 20 meters |
| Output | Signal Output: 4...20mA/HART (2 wires/4 wires) RS485/Modbus |
| Process Connection | Thread or Flanges |
| Medium Temperature | -40~120℃ |
| Process Pressure | -1Bar~3 Bar |
| Accuracy | ±5mm |
| Proof Grade | IP67 |
| Supply: | DC24V or 85-265VAC |
| The Frequency Span | up to 26G Hz |
| Explosion proof grade | Exib ⅡCT6 Gb |
