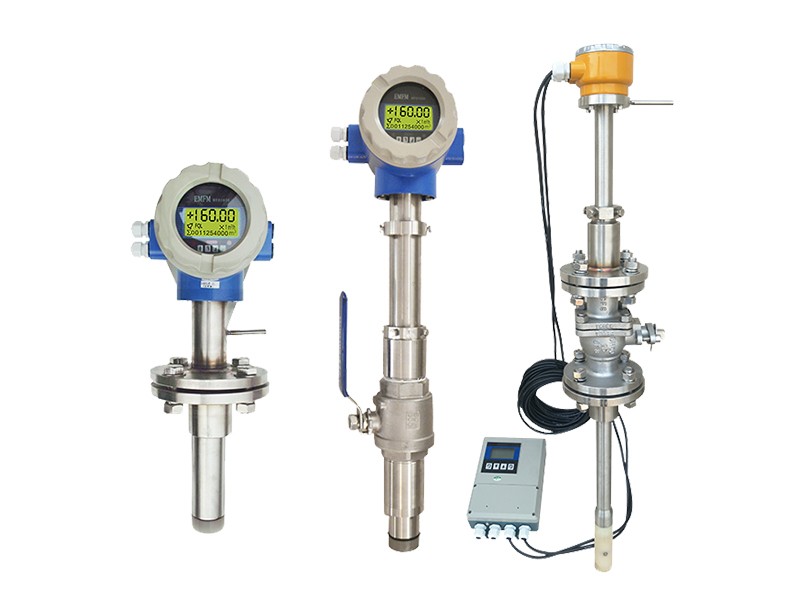

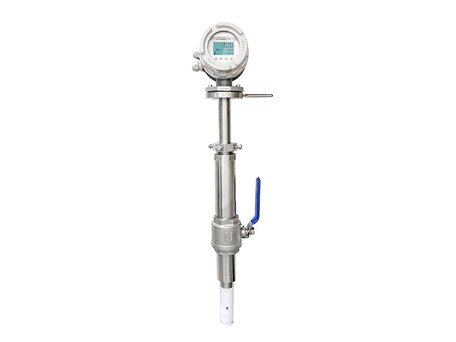

4801 Plug In Electromagnetic Flowmeter

Insertion electromagnetic flow meter is a type of flowmeter divided by structure. Based on Faraday's law of electromagnetic induction, the conductive medium in the measuring tube is equivalent to the conductive metal rod in the Faraday test, and the two electromagnetic coils at the upper and lower ends generate a constant magnetic field.

Application :

●Cogeneration or heating industry

●Aviation, aerospace, shipbuilding, nuclear energy and weapons industries

●Petroleum and chemical industry

●Forest industry, agricultural reclamation and light industry

●Pharmaceutical, food and cigarette manufacturing industry

01Low-frequency three-value rectangular wave constant current excitation is not affected by power frequency and various stray interferences on site.
02It adopts a dedicated electronic circuit and has the function of automatic zero reset of the empty tube.
03No moving parts, no choke parts. There is almost no additional pressure loss in the measurement.
04The measurement result has nothing to do with physical parameters such as flow velocity distribution, liquid pressure, temperature, density and viscosity.

Technical Data



Pipe size


Operating pressure

Less than 1.6 Mpa

Medium Temp

0℃ to 70

Flow range

0.01 m/s to 10 m/s

Power Consumption

Less than 20 W

Protection grade

IP65 for the transmitter(split & integrated type)

IP68 for the sensor of the split type

IP65 for the sensor of the integrated type


Connection method

Flange or Thread

304,304L,316,316L,Hastelloy alloy,titanium (Ti),etc.
