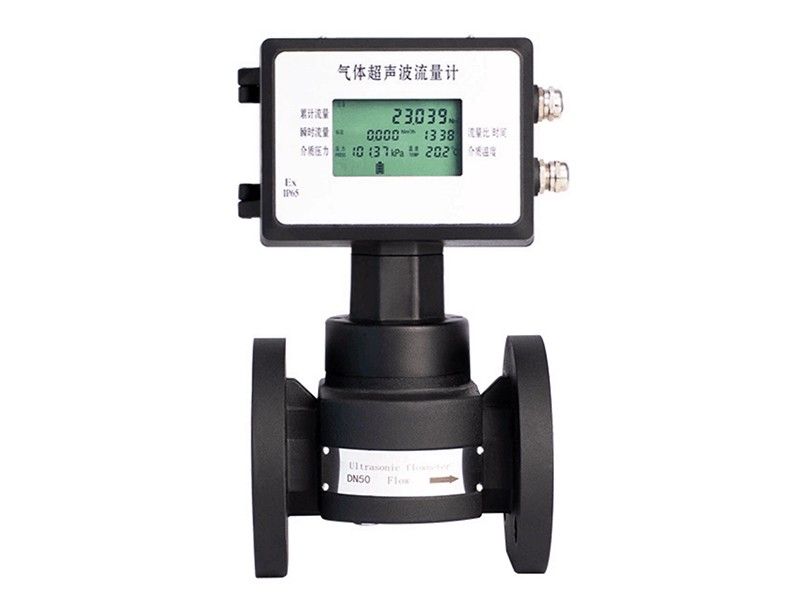

HGUF Ultrasonic Gas Flow Meter
Ultrasonic gas flow meters are based on the principle of the sound velocity difference of ultrasonic propagation, and calculate the gas velocity and flow rate by measuring the sound velocity difference of the forward and reverse propagation of the ultrasonic gas flow.
Application :
●Natural gas, flare gas, and other gas flow measurement
●Compressed air measurement
●Oxygen, nitrogen, hydrogen, chlorine and multi-component gas measurement
●Aeration and chlorine measurement in biogas and water treatment
Advantages
01The measurement range is wide, and the flow velocity range is 0.3-30m/s, reaching 1:100 under the first-level accuracy.
02There are no flow blocking devices, and there is no pressure loss in the pipeline.
03It is not affected by the physical and chemical properties of the fluid, and has a wide range of adaptability.
04The system without moving parts has good stability, no wear, can work for a long time, and has low maintenance.
Resources
Technical Data
|
Diameter（mm） |
Item |
Initial flow(m3/h) |
Flow range(m3/h) |
Accuracy（m3/h） |
|
25 |
MGUF-25 |
0.02 |
1~40 |
1% |
|
32 |
MGUF-32 |
0.03 |
5-50 |
|
|
40 |
MGUF-40 |
0.05 |
6~100 |
|
|
50 |
MGUF-50 |
0.07 |
4~160 |
|
|
80 |
MGUF-80 |
0.10 |
8-400 |
|
|
100 |
MGUF-100 |
0.20 |
16~700 |
|
|
150 |
MGUF-150 |
0.40 |
20~1400 |
|
|
200 |
MGUF-200 |
0.50 |
36~2000 |
|
|
250 |
MGUF-250 |
1 |
100-4000 |
|
|
300 |
MGUF-300 |
1 |
100-6000 |
