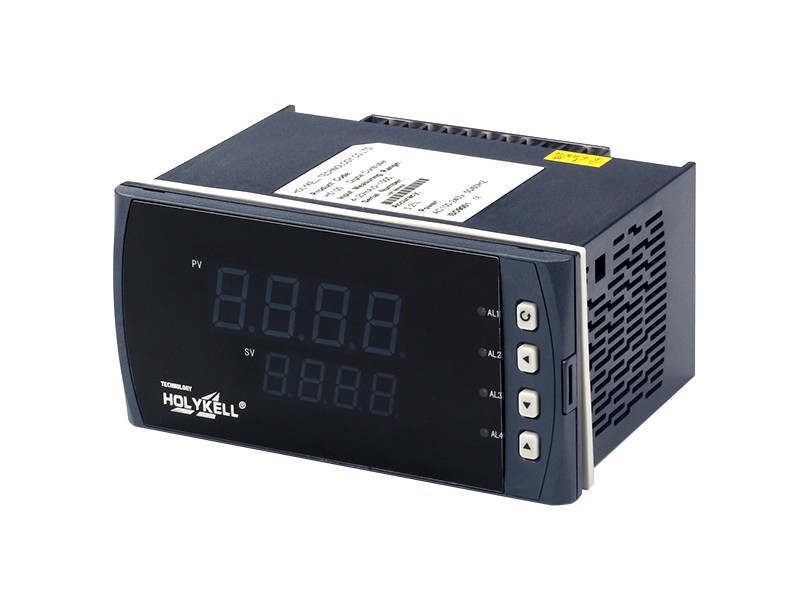

H5100 Digital Display Instrument With Single Loop
Digital display instrument with single-loop adopts LED dual-screen display, and can output pressure, liquid level, temperature or flow rate and other data at the same time with pressure or liquid level sensor.
Application :
●Use with pressure, level and flow meter
●High-precision measurement
●Diesel generators
●Refinery
Advantages
01Fully automatic SMD packaging technology, stronger anti-interference ability.
02The double LED screen outputs pressure, liquid level or flow rate and other measurement data.
03With wireless sensors, a remote monitoring solution can be realized.
04Sensor accessories manufacturer, one-stop solution.
Resources
Technical Data
|
Input |
|||
|
Input signals |
Current |
Voltage Resistance Thermocouple |
|
|
Input Impedance |
≤250Ω |
≥500KΩ |
|
|
Maximum input current |
≤30mA |
≤6V |
|
|
Output |
|||
|
Output signals |
Current |
Voltage |
|
|
Output load capability |
≤500Ω |
≥250 KΩ
(Note: Please replace the module for higher load capacity) |
|
|
Comprehensive parameter |
|||
|
Accuracy |
0.2%FS±1 bit |
||
|
Setting model |
Panel touch key
parameter setting values locking;
store the setting values permanently |
||
|
Display style |
-1999 ~ 9999 display range
0 ~ 100% measured value lightness bargraph display;
LBD display for working state |
||
|
Working environment |
Ambient temperature: 0 ~ 50 ℃;
Relative humidity: ≤ 85% RH;
Far from strong corrosive gas |
||
|
Power supply |
AC 100 ~ 240V, (50/60HZ);
DC 20 ~ 29V |
||
|
Power |
≤5W |
||
|
Frame |
Standard snap-on |
||
|
Communication |
Standard MODBUS communication protocol,
RS-485, communication distance up to 1 km,
RS-232 ,communication distance up to 15 meters
Note: While with communication function, the communication converter should be a active one. |
||
