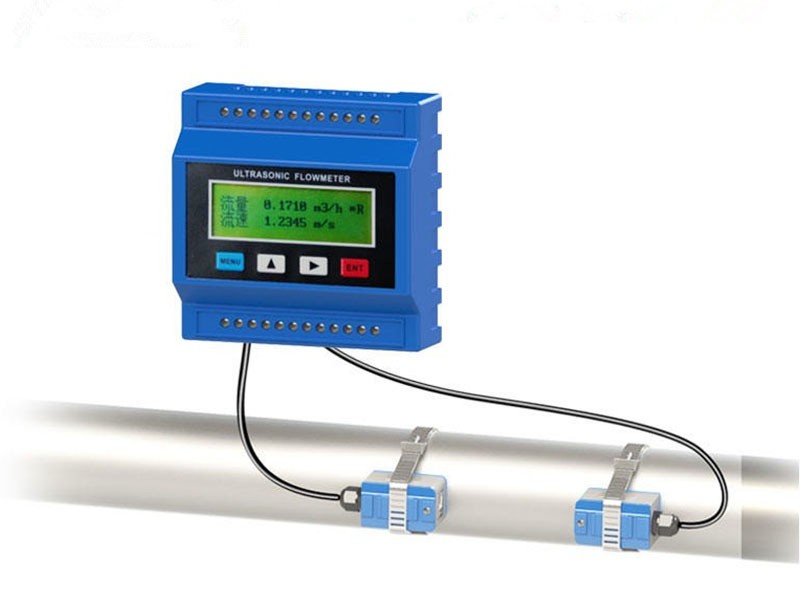

UF2000M Clamp On Ultrasonic Flow Meter

Clamp On Ultrasonic Flow Meter is a non-contact type clamp-on flowmeter, which can not only measure the flow of large pipe diameter medium, but also can be used for the measurement of strong corrosive, non-conductive, radioactive and flammable and explosive medium.

Application :

● Raw water, tap water, reclaimed water, sewage

● Water pipelines, canals, pumping stations, power stations

● Water pump, turbine single pump, single machine

● Industrial cooling circulating water

● High-pressure natural gas and other flammable and explosive gases

Advantages
01Linearity: 0.5%, Repeatability: 0.2%, Accuracy: ±1%
02Easy to operate
03Several type transducers for selection, measuring pipe size is from DN15mm to DN6000mm
04Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability
05Powerful Recording Function, record the totalizer data of the last 64 days/64 months/5 years
Resources

Holykell-Measuring Instrument

Technical Data

Model

UF2000M

Type

Clamp on type

Pipe Size

32-6000mm

Working tempe

-30°C~90˚C

High-temperature

-30°C~160˚C

Flow output signal

0~10mA/4~20mA /Pulse/MODBUS/HART

Supply voltage

AC220V or DC24V

Linearity

0.5%, Repeatability: 0.2%, Accuracy: ±0.2%

Powerful Recording Function, last 64 days/64 months/5 years
