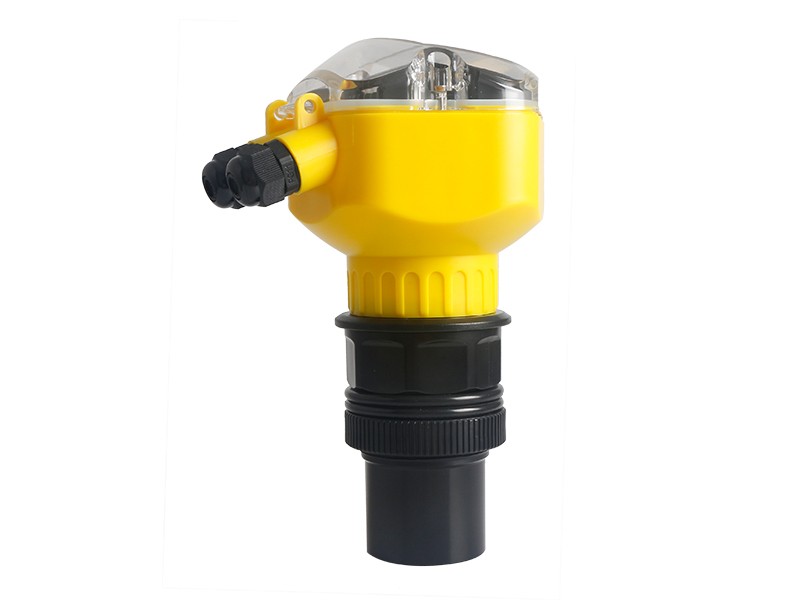

US8000 Ultrasonic Level Sensor

US8000 Ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Application :

● Liquid level measurement

● Solid level measure

● Beverages level monitoring

● Non contact measurement in farm warehouse

01Support M49*1.5 mm threaded into type installation and coil clamping type installation
02Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03Housing adopts the NLEPE synthetic material IP66 waterproof
04High quality terminal blocks ,Excellent anti-jamming is strong, long term stability

Technical Data

Level Range

5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m



Analog output
4-line system, 4~20mA/ 510Ω load
2-line system, 4~20mA/ 250Ω load
Relay output 2 groups (i.e. AC 250V/ 8A or  DC 30V/ 5A) optional, state programmable
Resolution  3mm or 0.1%FS (Max of them)


Power supply

Standard configuration: 24VDC

Optional: 220V AC+15%  50Hz

Ambient temp.

Display instrument: -20~+60ºC

Probe: -20~+80ºC


485, 232 communication (optional) (manufacturer agreement)


English language display: Level measurement

Distance measurement, transmission value

Water Proof

Display instrument: IP66, probe: IP68
