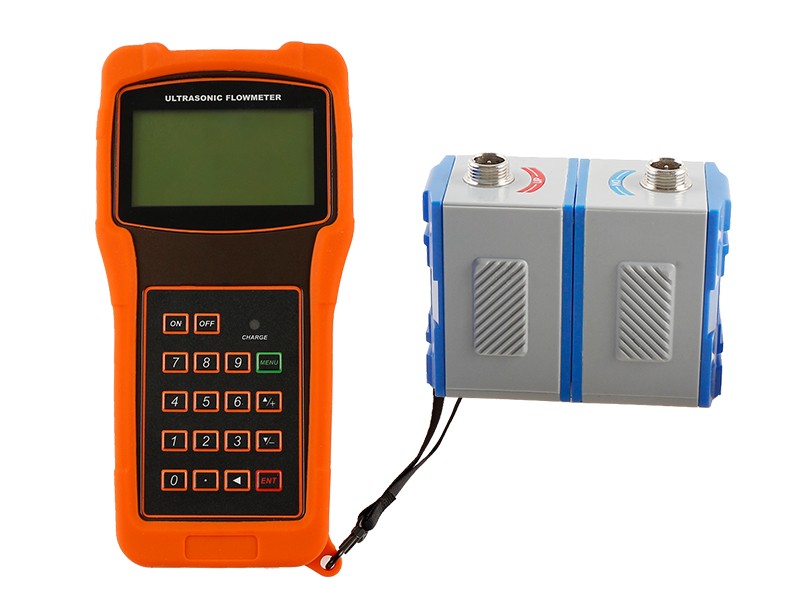

HUF Portable Ultrasonic Flow Meter
The portable ultrasonic flow meter is designed based on the flow measurement method of the clamp-on ultrasonic flow meter. The measurement process does not need to damage the pipeline or contact the measurement medium. The built-in rechargeable battery can work continuously for more than 12 hours.
Application :
● Drinking water, river water, sea water
● Cooling water, hot water, industrial sewage
● Oil ship pump
● Lubricant, diesel, fuel, chemical liquids
● Industrial circulating water
● Diesel fuel, oil flow metering, etc
Advantages
01High accuracy: Linearity: 0.5%, repeatability:0.2%, accuracy up to ±1%.
02Non-contacting measuring: The ultrasonic flow meter will be adsorbed on the outside of pipe, and then finish the measuring. Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
03Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
04Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation.
Resources
Technical Data
|
Linearity |
0.5% |
|
Repeatability |
0.2% |
|
Accuracy |
±1% of reading at rates>0.2 mps |
|
Response Time |
0-999 seconds, user-configurable |
|
Velocity |
±10 m/s |
|
Pipe Size |
25mm-6000mm |
|
Totalizer |
7-digit totals for net, positive and negative flow respectively |
|
Liquid Types |
Virtually all liquids |
|
Security |
Setup values Modification Lockout. Access code needs unlocking |
|
Display |
4x8 Chinese characters or 4x16 English letters |
|
Communication Interface |
RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |
|
Transducer Cord Length |
Standard 5m x 2, optional 10m x 2 |
|
Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
|
Data Logger |
Built-in data logger can store over 2000 lines of data |
|
Manual Totalizer |
7-digit press-key-to-go totalizer for calibration |
|
Housing Material |
ABS |
|
Case Size |
210x90x30mm |
|
Handset Weight |
500g with batteries |
