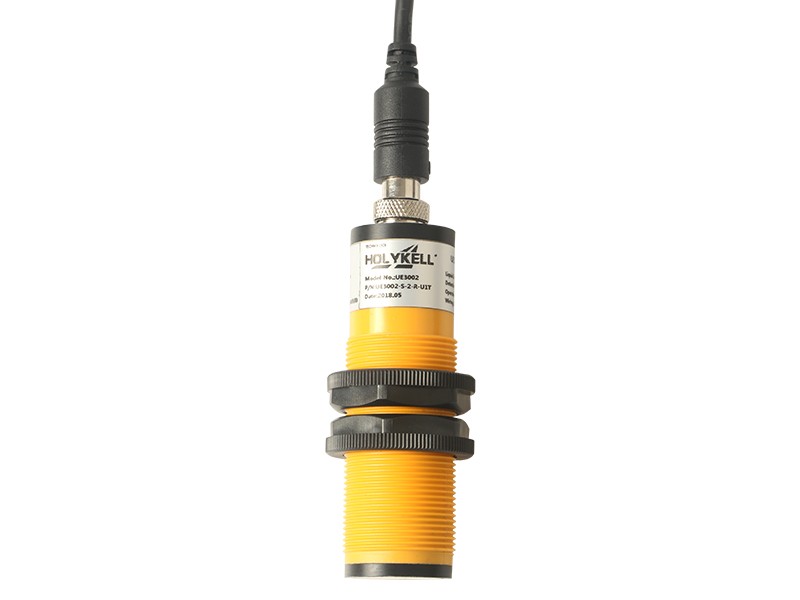

UE3002 Ultrasonic Distance Level Transmitter

UE3002 Ultrasonic distance level transmitter combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Application :

● Non contact distance level measurement

● Food level monitoring

● Industrial fuel level measurement

● Tank level measurement

Advantages
01Support M49*1.5 mm threaded into type installation and coil clamping type installation
02Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03Housing adopts the NLEPE synthetic material IP66 waterproof
04High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Resources

Holykell-Measuring Instrument

Technical Data

Level Range

0-1...2 M

Output

1~5V/0~5V;4-20mA/RS485,RS232/NPN swith or relay

Bline Zone

≤20CM

Power supply

12-24V/50 mA

Working temp

-20°C~+60°C

Pressure port

M30*1.5 male thread

Application

Liquid , Solid
