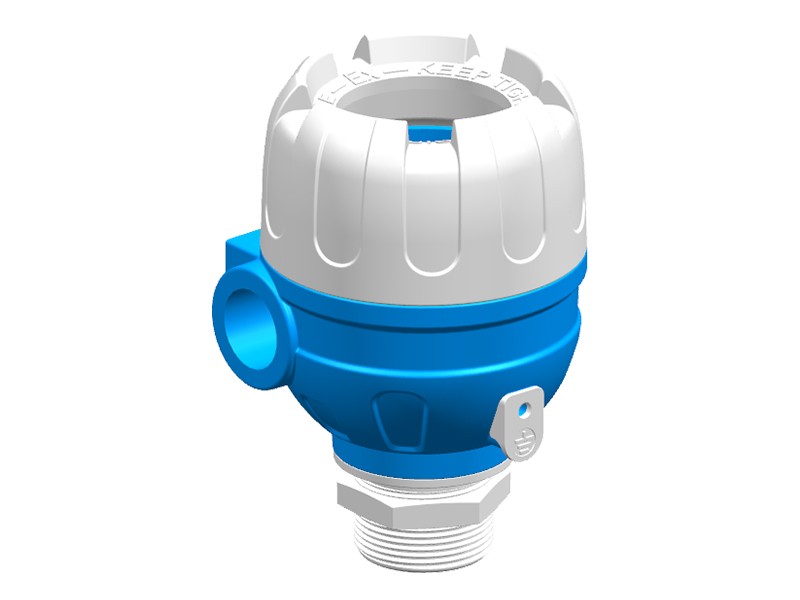

UE3005 Small Range Ultrasonic Level Transducer

UE3005 Small range ultrasonic level transducer combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Application :

● Liquid level measurement

● Solid level measure

● Beverages level monitoring

● Non contact measurement in farm warehouse

Advantages
01Support M49*1.5 mm threaded into type installation and coil clamping type installation
02Less than 9°C Beam angle design ,less than 200ms responsible time to make sure more accuracy
03Housing adopts the NLEPE synthetic material IP66 waterproof
04High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Resources

Holykell-Measuring Instrument

Technical Data

Model

UE3005

Range

1m, 2m

Bline Spot

<0.06m or <0.15m

Frequency

20KHz-350KHz

Accuracy

±1mm or ±2mm

Output

Analog signal                                                                 Digital signal
4-20mA, RL>600Ω(standard); 1-5V, 1-10V               RS485
Power Supply 12-24VDC
Consumption <1.5W
Display  OLED
Resolution
1mm
Material Cast Aluminum/304SS
Cable 1.5m (others optional)
Dimension Φ71mm×116mm×M30
Installation M30X1.5
