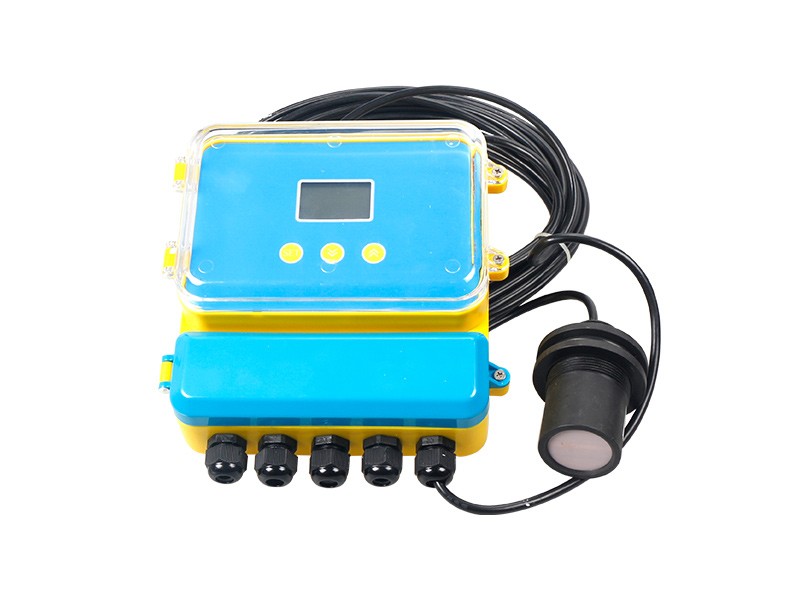

US9000 Long Range Ultrasonic Level Sensor

US9000 Long range ultrasonic level sensor combines ultrasonic sensors, temperature sensors, ultrasonic servo circuit, transmission circuit and uses SMD components and ASIC. All these features realize a concise and smart level transmitter.

Application :

● Liquid level measurement

● Solid level measure

● Beverages level monitoring

● Non contact measurement in farm warehouse

01Support M49*1.5 mm threaded into type installation and coil clamping type installation
02Less than 9° Beam angle design ,less than 200ms responsible time to make sure more accuracy
03Housing adopts the NLEPE synthetic material IP66 waterproof
04High quality terminal blocks ,Excellent anti-jamming is strong, long term stability

Technical Data

Level Range

5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m



Analog output

4~20mA/ 510Ω load

Relay output

2 groups for single channel and 4 groups for double channels (optional)

AC 250V/ 8A or DC 30V/ 5A, state programmable

Ambient temperature

Display instrument: -20~+60ºC

Probe: -20~+80ºC


Power supply

Standard configuration: 220V AC+15%  50Hz

Optional: 24VDC 120mA

Customized: 12VDC or battery powered


3mm or 0.1%FS (Max of them)


English language display: Level measurement

Distance measurement, transmission value

Water Proof

IP65(Meter), IP68(Sensor)
